Beam Clamps
-
Center Load Clamps
Beam Clamp

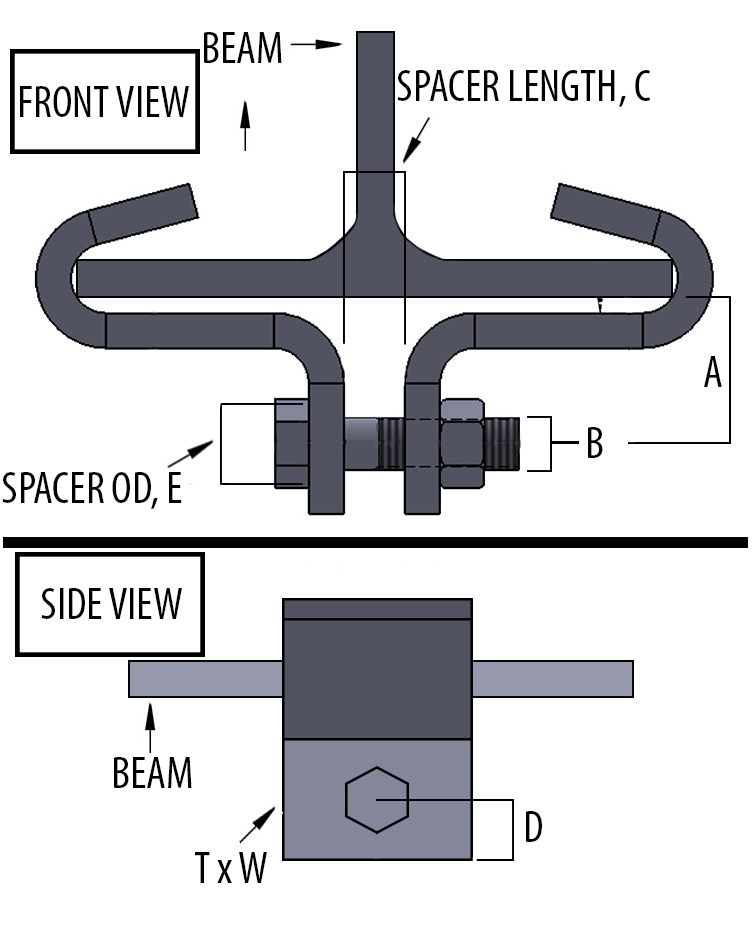

Beam Clamp – Fig. 150
Material: Carbon steel, also available in 304 and 316 stainless steel.
Finish: Plain, electro-galvanized.
Service: Designed for attaching hanger rods from the center of an I-beam...
Approvals: Complies with Federal Specifications WW-H-171-E (Type# 21), A-A-1192 A...
Ordering: Specify clamp size, flange width, beam thickness, figure number and finish.
Notes: Not recommended for beams greater than 12 inches wide.
Steel Beam Clamp
Steel Beam Clamp – Fig. 155
Material: Carbon steel, aslo available in 304 and 316 stainless steel.
Finish: Plain, electro-galvanized or painted.
Service: Designed for attaching hanger rods to be centered under beam flanges. The...
Approvals: There are no approval options for this product.
Ordering: Specify clamp size, beam thickness, flange width, figure number and finish.
Notes: Not recommended for beams greater than 12 inches wide.
Steel Beam Clamp
Side Steel Beam Clamp – Fig. 156
Material: Carbon steel, also available in 304 and 316 stainless steel.
Finish: Plain, electro-galvanized or painted.
Service: Designed to be used where it is necessary for the hanger rod to run vertically...
Approvals: Complies with Federal Specifications WW-H-171-E (Type# 53), A-A-1192 A...
Ordering: Specify clamp size, flange width and thickness, figure number and finish.
Notes: Not recommended for beams greater than 12 inches wide.
Top Beam Hook
Top Beam Hook – Fig. 158
Material: Carbon steel, also available in 304 and 316 stainless steel.
Finish: Plain, electro-galvanized or painted.
Service: Designed for attaching hanger rod to the top flange of a beam.
Approvals: There are no approval options for this product.
Ordering: Specify size, flange width, thickness and finish.
Notes: Not recommended for beams greater than 12 inches wide.
Adjustable Rod Beam Clamp
Adjustable Rod Beam Clamp – Fig. 159
Material: Carbon steel, also available in 304 and 316 stainless steel.
Finish: Plain or electro-galvanized.
Service: Designed to be used in the suspension of a hanger rod from an I-beam...
Approvals: Complies with Federal Specifications WW-H-171-E (Type# 54), A-A-1192 A...
Ordering: Specify rod size, figure number and finish.
Notes: There are no notes for this product.
Malleable Iron Center Load Beam Clamp
Malleable Iron Center Load Beam Clamp – Fig. 218
Material: Malleable iron, also available in 304 and 316 stainless steel.
Finish: Plain or electro-galvanized.
Service: Designed for the suspension of a hanger rod from the center of an I-beam...
Approvals: When used with FIG. 157 Extension Piece, complies with Federal...
Ordering: Specify figure number and finish.
Notes: For complete assembly with extension piece see FIG. 229.
Malleable Beam Clamp with Extension Piece
Malleable Beam Clamp with Extension Piece – Fig. 229
Material: Malleable iron, also available in 304 and 316 stainless steel.
Finish: Plain or electro-galvanized.
Service: Designed for the suspension of a hanger rod from the center of an I-beam...
Approvals: Complies with Federal Specification WW-H- 171-E (Type# 30), A-A-1192 A...
Ordering: Specify rod size, figure number and finish.
Notes: There are no notes for this product.
Heavy Beam Clamp Assembly
Heavy Beam Clamp Assembly – Fig. 450
Material: ASTM A-36 carbon steel with ASTM A-235 class C eye-nut.
Finish: Plain, electro-galvanized or painted.
Service: Designed to be used for the suspension of heavy loads from beams up to 16...
Approvals: Complies with Federal Specification WW-H-171-E (Type# 28 without links...
Ordering: Specify clamp size, figure number, rod size and finish.
Notes: Maximum loads are based on maximum rod sizes. For load capacity of other rod...
