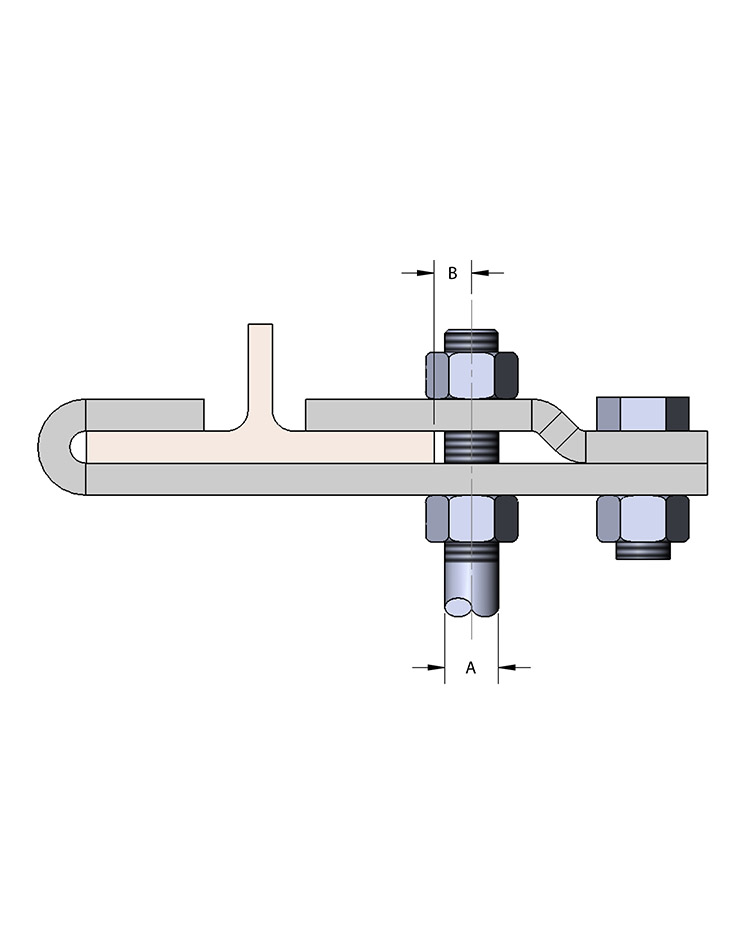

Side Steel Beam Clamp – Fig. 156

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized or painted.

Service

Designed to be used where it is necessary for the hanger rod to run vertically close to the beam's edge, eliminating drilling of holes in structural member.

Approvals

Complies with Federal Specifications WW-H-171-E (Type# 53), A-A-1192 A (Type# 25), and MSS SP-58 and SP-69 (Type# 25).

Ordering

Specify clamp size, flange width and thickness, figure number and finish.

Notes

Not recommended for beams greater than 12 inches wide.

  • Size No.
    1
    2
    3
    4
    5
  • Stock Size
    1 1/4 x 1/4
    1 1/4 x 1/4
    1 1/2 x 3/8
    2 x 3/8
    2 1/2 x 1/2
  • A
    3/8
    1/2
    5/8
    3/4
    7/8
  • B
    5/16
    5/16
    7/16
    1/2
    9/16
