Malleable Iron Center Load Beam Clamp – Fig. 218

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagrammatic notes for this product.

Download Submittal

Material

Malleable iron.

Finish

Plain or electro-galvanized.

Service

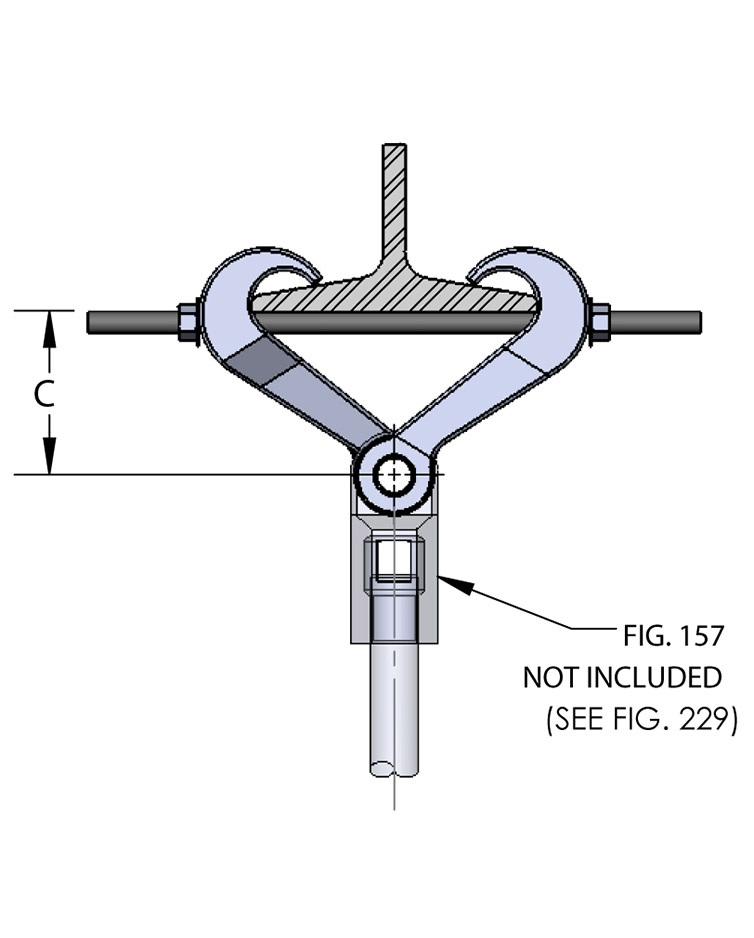

Designed for the suspension of a hanger rod from the center of an I-beam. The clamp accommodates flange widths of 2 3/8" - 7". Flange thickness not to exceed .60 inches. Normally used in conjunction with figure 157 extension piece. Figure 157 provides 1" of vertical adjustment.

Approvals

When used with FIG. 157 Extension Piece, complies with Federal Specification WW-H-171-E (Type# 30), A-A-1192 A (Type# 30) and Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 30).

Ordering

Specify figure number and finish.

Notes

For complete assembly with extension piece see FIG. 229.
