Carbon steel, also available in 304 and 316 stainless steel.
Plain, electro-galvanized.

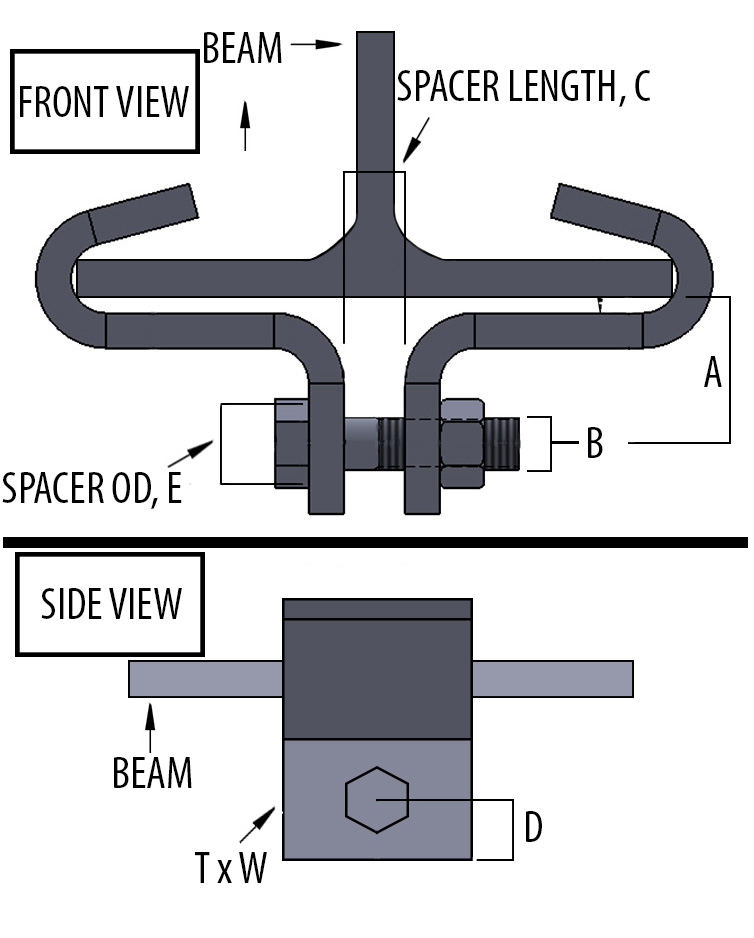

Designed for attaching hanger rods from the center of an I-beam. Normally used with figure 26, 26W eyerods, or figure 13 weldless eye nut.
Complies with Federal Specifications WW-H-171-E (Type# 21), A-A-1192 A (Type# 21), and MSS SP-58 and SP-69 (Type# 21).
Specify clamp size, flange width, beam thickness, figure number and finish.
Not recommended for beams greater than 12 inches wide.
