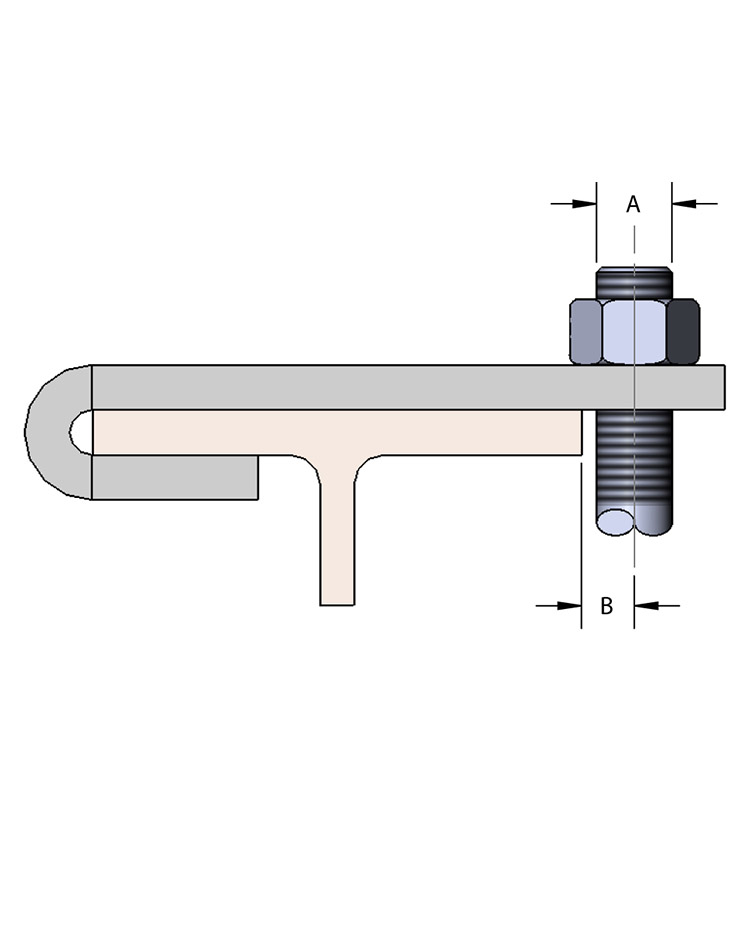

Top Beam Hook – Fig. 158

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized or painted.

Service

Designed for attaching hanger rod to the top flange of a beam.

Approvals

There are no approval options for this product.

Ordering

Specify size, flange width, thickness and finish.

Notes

Not recommended for beams greater than 12 inches wide.

  • Hook Size
    1
    2
    3
    4
    5
  • Material Size
    1 1/4 x 1/4
    1 1/4 x 1/4
    1 1/2 x 3/8
    2 x 3/8
    2 1/2 x 1/2
  • A
    3/8
    1/2
    5/8
    3/4
    7/8
  • B
    5/16
    3/8
    7/16
    1/2
    9/16
