Heavy Beam Clamp Assembly – Fig. 450

For more product information please call (631) 665-9300

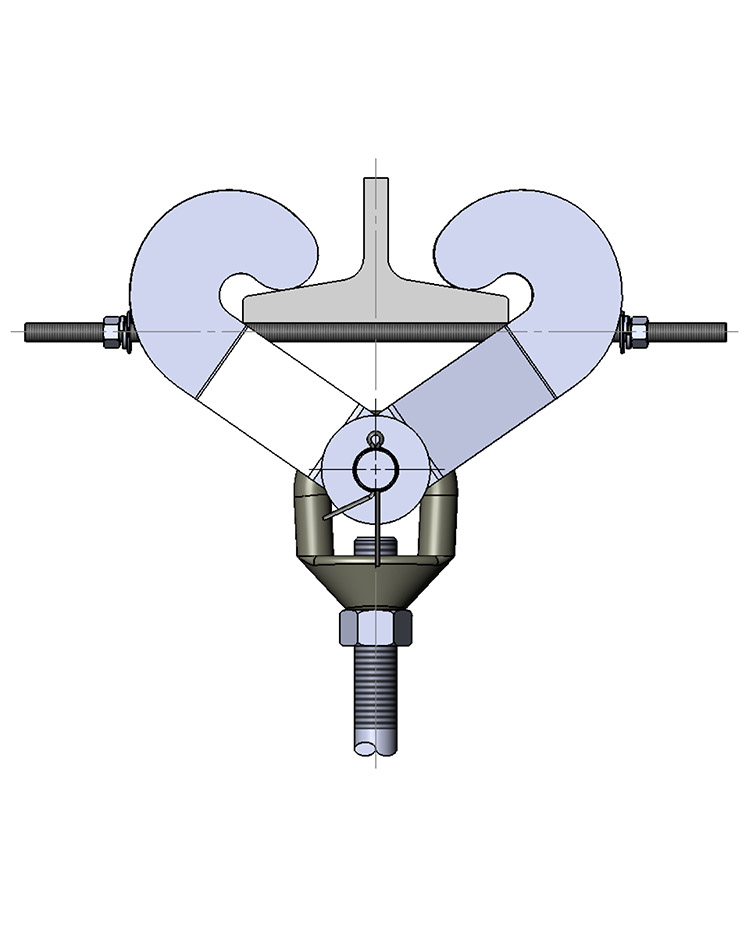

Diagram Notes

*Supplied with links

Material

ASTM A-36 carbon steel with ASTM A-235 class C eye-nut.

Finish

Plain, electro-galvanized or painted.

Service

Designed to be used for the suspension of heavy loads from beams up to 16 inches wide and up to 1 inch thick. Normally used with figure 26, 26W eyerods or figure 13, 13I weldless eye nuts.

Approvals

Complies with Federal Specification WW-H-171-E (Type# 28 without links, Type #29 with links), A-A-1192 A (Type# 28 without links, Type #29 with links) and Manufacturers' Standardization Society MSS SP- 58 and SP-69 (Type# 28 without links, Type #29 with links).

Ordering

Specify clamp size, figure number, rod size and finish.

Notes

Maximum loads are based on maximum rod sizes. For load capacity of other rod sizes, see page 117.

  • Size


    3


    6
  • Max Rod
    3/4
    3/4
    1

    1 1/2
    1 1/2
  • Wgt Each (lbs)

    12
    11
    16
    30
    48
  • Max Rec Load (lbs)
    2800
    2800
    5000
    5000
    11500
    11500
Flange Size
  • Width
    3-8
    7-12*
    3-8
    7-15*
    5-11
    8-16*
  • Max Thickness
    5/8
    5/8
    3/4
    3/4

    1
