There are currently no diagram notes for this product.
Carbon steel, also available in 304 and 316 stainless steel.
Plain, electro-galvanized or painted.

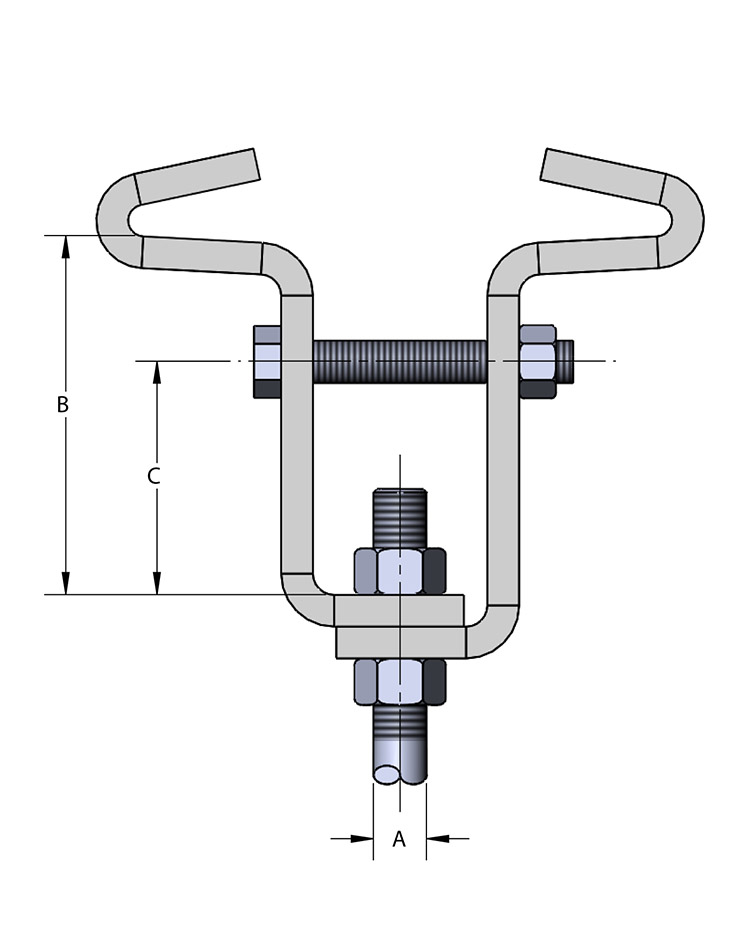

Designed for attaching hanger rods to be centered under beam flanges. The clamp provides a vertical adjustment of approximately 2 inches.
There are no approval options for this product.
Specify clamp size, beam thickness, flange width, figure number and finish.
Not recommended for beams greater than 12 inches wide.
