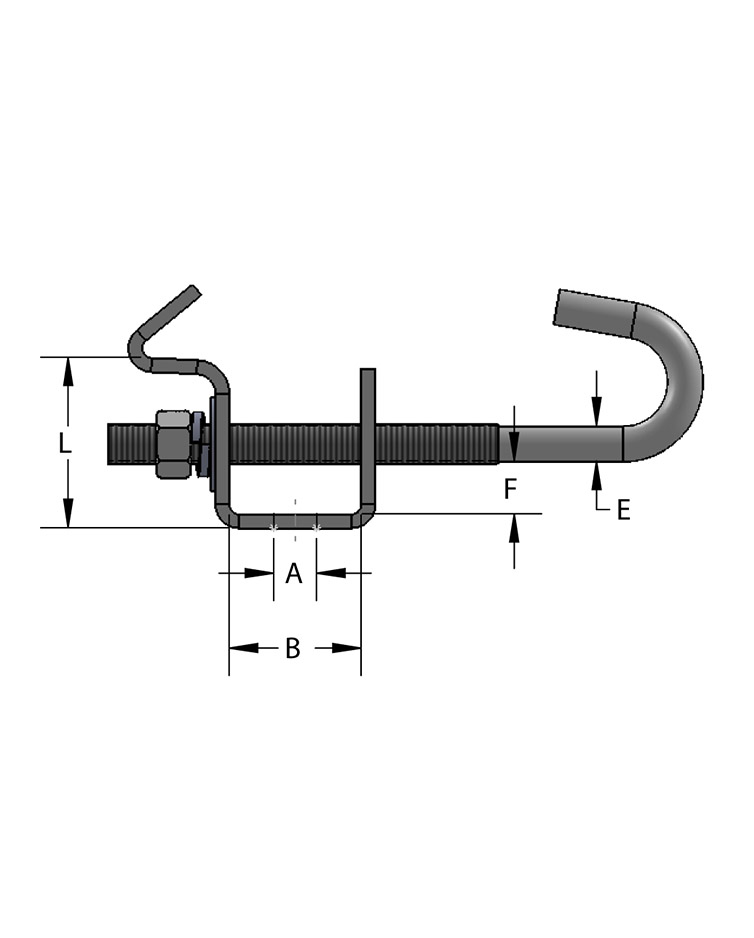

Adjustable Rod Beam Clamp – Fig. 159

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Carbon steel.

Finish

Plain or electro-galvanized.

Service

Designed to be used in the suspension of a hanger rod from an I-beam. Recommended for flange widths from 4 inches minimum to 8 inches maximum.

Approvals

Complies with Federal Specifications WW-H-171-E (Type# 54), A-A-1192 A (Type# 27), and MSS SP-58 and SP-69 (Type# 27).

Ordering

Specify rod size, figure number and finish.

Notes

There are no notes for this product.
