Clamps
-
Pipe Clamps
rising clamp
Standard Riser Clamp – Fig. 50
Material: Carbon steel, also available in 304 (50SS) and 316 (50SX) stainless steel.
Finish: Plain, painted, electro-galvanized, hot-dip galvanized, plastic coated.
Service: Designed for supporting and stabilizing vertical pipe runs.
Approvals: U.L. - U.L.C. listed (sizes 2" - 8"). Complies with Federal Specification...
Ordering: Specify pipe size, figure number and finish.
Notes: Plastic coated riser clamps are completely plastic coated with zinc plated...
riser clamp
Riser Clamp for Plastic Pipe – Fig. 48
Material: Carbon steel, also available in 304 and 316 stainless steel.
Finish: Plain, electro-galvanized, plastic coated.
Service: Designed for the support of plastic DWV pipe.
Approvals: Complies with Federal Specification WWH-171E (Type# 8), A-A-1192A...
Ordering: Specify pipe size, figure number and finish.
Notes: There are no notes for this product.
riser clamp
Riser Clamp for Plastic Pipe, Plastic Coated – Fig. 49PC
Material: Carbon steel, also available in 304 and 316 stainless steel.
Finish: Plain, electro-galvanized, plastic coated.
Service: Designed for the support of plastic DWV pipe.
Approvals: Complies with Federal Specification WWH-171E (Type# 8), A-A-1192A...
Ordering: Specify pipe size, figure number and finish.
Notes: There are no notes for this product.
riser clamp
Copper Plated Copper Tubing Riser Clamp – Fig. 50CT
Material: Carbon steel.
Finish: Copper plated (50CT) or Copper epoxy coated (COPPER- GARD-50CTI)...
Service: Designed for supporting and stabilizing vertical tubing runs.
Approvals: Complies with Federal Specification WW-H-171-E (Type# 8), A-A-1192A...
Ordering: Specify pipe size, figure number and finish.
Notes: There are no notes for this product.
riser clamp
Epoxy Coated (Copper Gard) Copper Tubing Riser Clamp – Fig. 50CTI
Material: Carbon steel.
Finish: Copper plated (50CT) or Copper epoxy coated (COPPER- GARD-50CTI)...
Service: Designed for supporting and stabilizing vertical tubing runs.
Approvals: Complies with Federal Specification WW-H-171-E (Type# 8), A-A-1192A...
Ordering: Specify pipe size, figure number and finish.
Notes: There are no notes for this product.
riser clamp

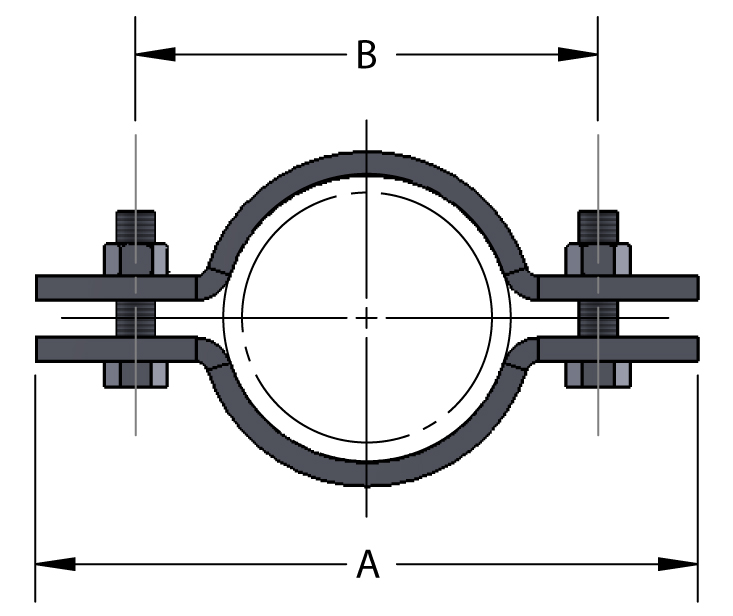

Short Arm Riser Clamp – Fig. 50SA
Material: Carbon steel, also available in 304 and 316 stainless steel.
Finish: Plain, electro-galvanized.
Service: Designed for supporting and stabilizing vertical pipe runs. Overall length of...
Approvals: Complies with Federal Specification WWH-171-E (Type# 8), A-A-1192A...
Ordering: Specify pipe size, figure number and finish.
Notes: There are no notes for this product.
rising clamp
Heavy Duty Riser Clamp – Fig. 50HD
Material: Carbon steel, also available in 304 and 316 stainless steel.
Finish: Plain, hot-dip galvanized.
Service: Designed to support vertical piping from hanger rods or structural members...
Approvals: MSS SP-58 Type 42
Ordering: Specify pipe size, figure number and finish.
Notes: 650ºF for Black Carbon Steel and Stainless Steel, 350ºF for Hot-Dip Galvanized...
rising clamp
Standard Riser Clamp sized for DIP – Fig. 50DIP
Material: 304 (50SS) and 316 (50SX) stainless steel.
Finish: Plain
Service: Designed for supporting and stabilizing vertical pipe runs.
Approvals: U.L. - U.L.C. listed (sizes 2" - 8"). Complies with Federal Specification...
Ordering: Specify pipe size, figure number and finish.
Notes: There are not any notes for this product.
offset pipe clamp
Offset Pipe Clamp – Fig. 95
Material: Carbon steel. Also available in 304 and 316 stainless steel.
Finish: Plain, electro-galvanized.
Service: Designed for supporting horizontal or vertical pipe lines at a fixed distance...
Approvals: There are no approval options for this product.
Ordering: Specify pipe size, figure number and finish.
Notes: There are no notes for this product.
extended pipe clamp
Extended Pipe Clamp  – Fig. 97
Material: Carbon steel. Also available in 304 and 316 stainless steel.
Finish: Plain, electro-galvanized.
Service: Designed for suspending or supporting pipe lines where exact distance...
Approvals: There are no approval options for this product.
Ordering: Specify pipe size, figure number and finish.
Notes: There are no notes for this product.
double bolt pipe clamp
Double Bolt Pipe Clamp – Fig. 189
Material: Carbon steel, also available in 304 and 316 stainless steel.
Finish: Plain, electro-galvanized.
Service: Designed for the suspension of insulated pipe lines. Normally used with...
Approvals: Complies with Federal Specifications WW-H-171-E (Type# 3), A-A-1192 A...
Ordering: Specify pipe size, figure number and finish.
Notes: Available in 304 and 316 stainless steel.
double bolt pipe clamp
Alloy Double Bolt Pipe Clamp – Fig. 189A
Material: Alloy steel (ASTM A387 grade 22) (304 and 316 stainless steel).
Finish: Plain.
Service: Designed for suspension of high temperature insulated pipe lines, maximum...
Approvals: Complies with Federal Specifications WW-H-171-E (Type# 3), A-A-1192 A...
Ordering: Specify pipe size and figure number.
Notes: Galvanizing is not recommended for alloy products.
double bolt pipe clamp
Heavy Duty Double Bolt Pipe Clamp – Fig. 189H
Material: Carbon steel, also available in 304 and 316 stainless steel.
Finish: Plain or electro-galvanized.
Service: Designed for suspension of high temperature pipe lines within the limitation...
Approvals: Complies with Federal Specifications WW-H-171-E (Type# 3), A-A-1192 A...
Ordering: Specify pipe size, figure number and finish.
Notes: Maximum temperature is 750°F and accommodates up to 4" thick insulation.
pipe clamp
Standard Steel Pipe Clamp – Fig. 212
Material: Carbon steel, also available in 304 and 316 stainless steel.
Finish: Plain or electro-galvanized.
Service: Designed for the suspension of cold pipe lines or hot pipe lines where no...
Approvals: Complies with Federal Specifications WW-H-171-E (Type# 4), A-A-1192 A...
Ordering: Specify pipe size, figure number and finish.
Notes: Available in 304 and 316 stainless steel and alloy steel.
pipe clamp
Steel Pipe Clamp sized for DIP – Fig. 212DIP
Material: 304 and 316 stainless steel.
Finish: Plain
Service: Designed for the suspension of cold pipe lines or hot pipe lines where no...
Approvals: There are no approval options for this product.
Ordering: Specify pipe size, figure number and finish.
Notes: There are not any notes for this product.
pipe clamp
Heavy Duty Two-Bolt Pipe Clamp – Fig. 216
Material: Carbon steel, also available in 304 and 316 stainless steel.
Finish: Plain, electro-galvanized.
Service: Designed for the suspension of cold or hot pipe lines with heavy loads where...
Approvals: Complies with Federal Specifications WW-H-171-E (Type# 4), A-A-1192 A...
Ordering: Specify pipe size, figure number and finish.
Notes: Available in 304 and 316 stainless and alloy steel.
Four Section Rodding Brand
Four Section Rodding Brand – Fig. 570
Material: Carbon steel, also available in 304 and 316 stainless steel.
Finish: Plain, hot-dip galvanized or painted.
Service: Designed for the suspension of cold pipe lines or hot pipe lines where no...
Approvals: Made to specifications of the City of New York and the New York City Port...
Ordering: Specify size, figure number and finish
Notes: Four heavy square washer plates drilled for the correct rod size are furnished...
Four Bolt Socket Clamp
Four Bolt Socket Clamp – Fig. 595
Material: Carbon steel, also available in 304 and 316 stainless steel.
Finish: Plain or electro-galvanized.
Service: Designed to used to clamp mechanical joint or socket joint piping and...
Approvals: Complies with the requirements of the National Fire Protection...
Ordering: Specify size, figure number and finish.
Notes: There are no notes for this product.
Socket Clamp
Socket Clamp – Fig. 600
Material: Carbon steel, also available in 304 and 316 stainless steel.
Finish: Plain, electro-galvanized.
Service: Designed to be used to clamp joints of underground AWWA ductile...
Approvals: There are no approval options for this product.
Ordering: Specify size, figure number and finish.
Notes: There are no notes for this product.
Corporation Eye Bolt – Fig. 575
Material: Carbon steel, also available in 304 and 316 stainless steel.
Finish: Plain.
Service: Designed to be used with figure number 600 socket clamp.
Approvals: There are no approval options for this product.
Ordering: Specify figure number.
Notes: There are no notes for this product.
Socket Clamp
Manhole Drop Pipe Clamp – Fig. 903
Material: Certified T-304 stainless steel.
Finish: There are no finish notes for this product.
Service: Designed to be used to clamp joints of underground AWWA ductile...
Approvals: There are no approval options for this product.
Ordering: Specify size, figure number and finish.
Notes: Size range is 4” – 12” SDR 35 / DIP(C-900) / IPS-Schedule 40
