Epoxy Coated (Copper Gard) Copper Tubing Riser Clamp – Fig. 50CTI

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Carbon steel.

Finish

Copper plated (50CT) or Copper epoxy coated (COPPER- GARD-50CTI). COPPER-GARD products offer superior cor- rosion protection due to the epoxy coating over electro-galva- nized steel. The alternative copper plating that has been done historically identifies the product and is not intended for protection. Refer to MSS SP58, 13.3.

Service

Designed for supporting and stabilizing vertical tubing runs.

Approvals

Complies with Federal Specification WW-H-171-E (Type# 8), A-A-1192A (Type# 8), Manufacturers' Standardization Society SP-58 and MSS SP-69 (Type# 8).

Ordering

Specify pipe size, figure number and finish.

Notes

There are no notes for this product.

  • Tube Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
    5
    6
  • Tube OD
    0.625
    0.875
    1.125
    1.375
    1.625
    2.125
    2.625
    3.125
    3.625
    4.125
    5.125
    6.125
  • Material Size
    11ga x 1.0
    11ga x 1.0
    11ga x 1.0
    11ga x 1.0
    11ga x 1.0
    8ga x 1.0
    8ga x 1.0
    8ga x 1.0
    8ga x 1.25
    8ga 1.25
    3ga x 1.50
    3ga x 1.50
  • Bolt
    1/4
    1/4
    1/4
    1/4
    1/4
    3/8
    3/8
    3/8
    3/8
    3/8
    1/2
    1/2

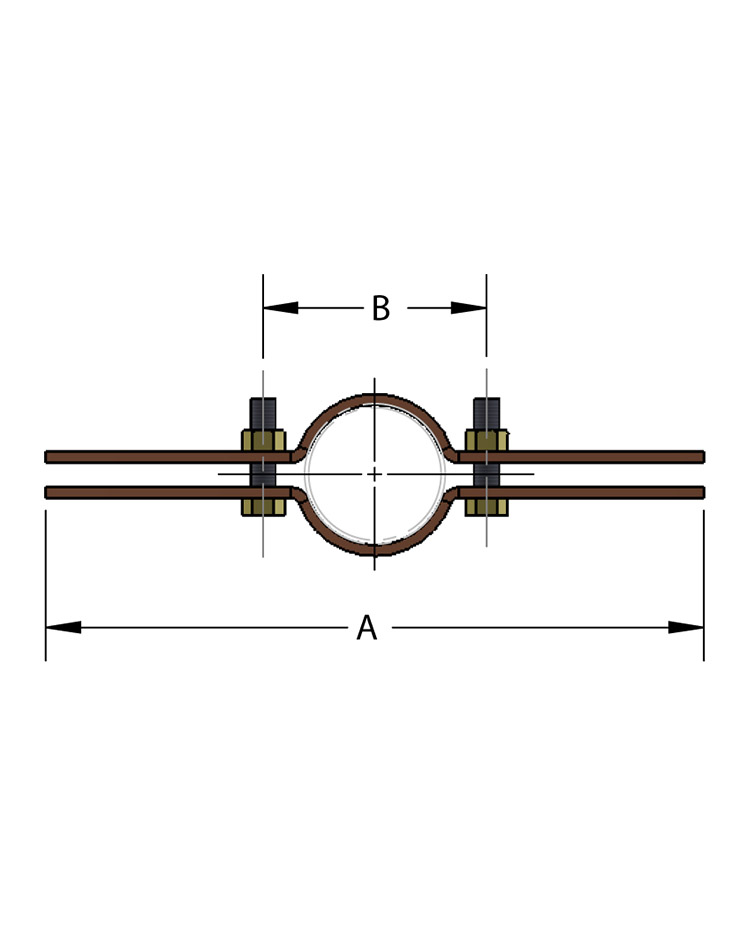

  • A
    6 11/16
    2
    2 1/4
    9
    9 3/8
    9 15/16
    10 1/2
    11
    12 3/16
    12 5/8
    14 1/8
    15
  • B
    1 11/16
    2
    2 1/4
    2 1/2
    2 7/8
    3 3/8
    4
    4 7/16
    5 1/8
    5 9/16
    7 1/8
    8
  • Wgt Each (lbs)
    0.48
    0.50
    0.64
    0.66
    0.68
    1.06
    1.08
    1.16
    1.58
    1.66
    3.42
    3.76
  • Max REC Load (lbs)
    225
    225
    250
    250
    250
    500
    500
    500
    500
    500
    815
    815
