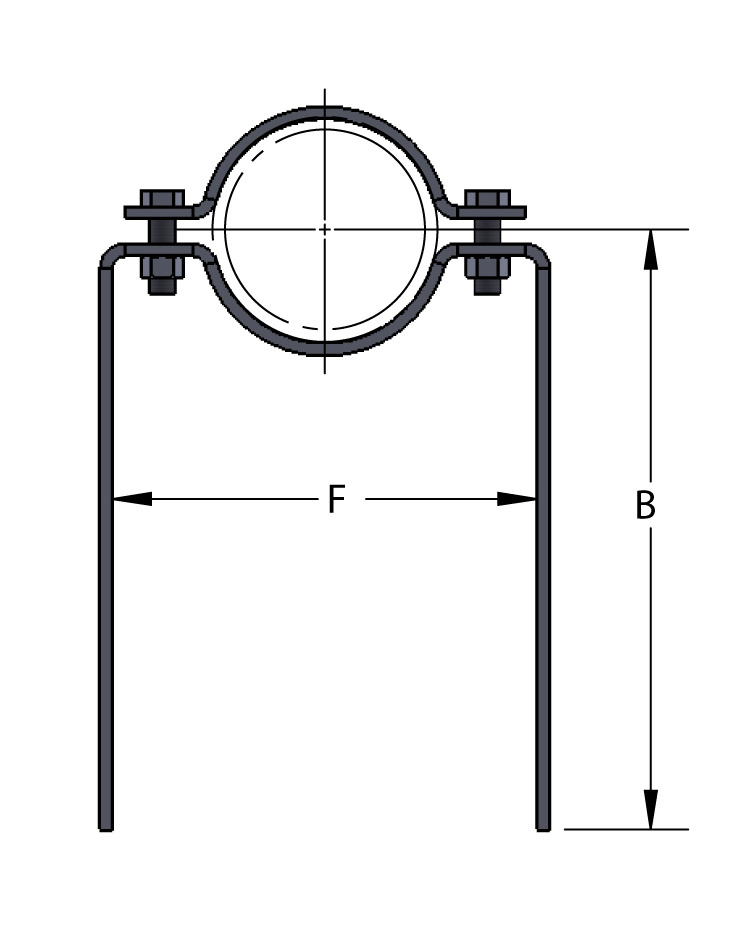

Extended Pipe Clamp – Fig. 97

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Carbon steel. Also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized.

Service

Designed for suspending or supporting pipe lines where exact distance between structure and pipe cannot be deter- mined until installation.

Approvals

There are no approval options for this product.

Ordering

Specify pipe size, figure number and finish.

Notes

There are no notes for this product.

  • Pipe Size
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
    5
    6
    8
  • Pipe OD
    1.050
    1.315
    1.660
    1.900
    2.375
    2.875
    3.500
    4.000
    4.500
    5.563
    6.625
    8.625
  • Material Size
    1 1/4 x 1/4
    1 1/4 x 1/4
    1 1/4 x 1/4
    1 1/4 x 1/4
    1 1/2 x 1/4
    1 1/2 x 1/4
    1 1/2 x 1/4
    1 1/2 x 1/4
    1 1/2 x 1/4
    1 1/2 x 1/4
    2 x 3/8
    2 x 3/8
  • Bolt
    3/8
    3/8
    3/8
    3/8
    1/2
    1/2
    1/2
    1/2
    1/2
    1/2
    5/8
    5/8
  • B
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
    12
  • F
    4 7/16
    4 11/16
    5
    5 1/4
    6
    7 1/4
    7 7/8
    8 3/8
    9 1/4
    10 1/2
    12 1/2
    14 5/8
  • Wgt Each (lbs)
    1.85
    2.34
    2.40
    2.45
    3.13
    4.20
    4.47
    4.74
    4.90
    5.32
    11.15
    12.65
