Manhole Drop Pipe Clamp – Fig. 903

For more product information please call (631) 665-9300

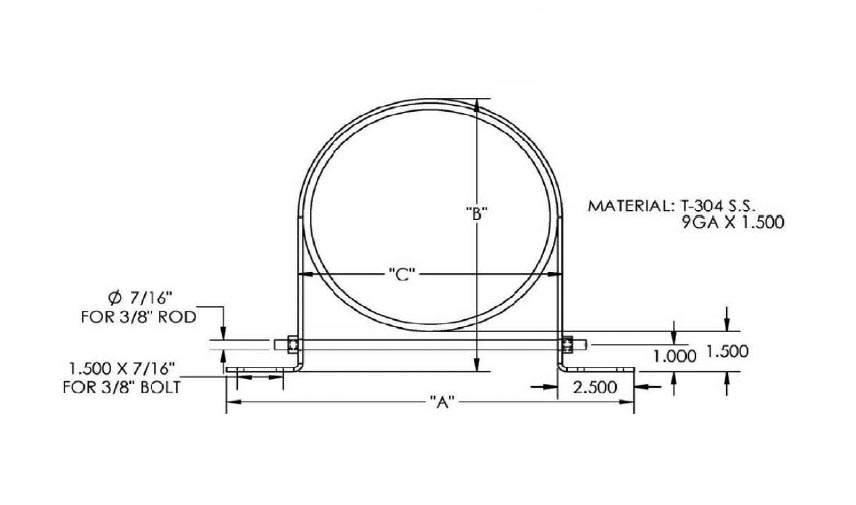

Diagram Notes

Click the image to make it larger

Download Submittal

Material

T-304 stainless steel.

Finish

There are no finish notes for this product.

Service

Designed for easy installation and support of manhole drop pipe.

Approvals

There are no approval notes for this product.

Ordering

There are no ordering notes for this product.

Notes

Size range is 4” – 12” SDR 35 / DIP(C-900) / IPS-Schedule 40

domestic

Size

4”
6”
8”
10”
12”
SDR-35 Pipe OD

4.125”
6.275”
8.400”
10.500”
12.500”
Rod Length

5-7/8”
7-5.8”
10-1/4”
12-1/4”
14-1/4”
A

9.215
11.275
13.400
15.500
17.500
B

5.865
7.925
10.050
12.150
14.150
C

4.514
6.574
8.700
10.800
12.800

Size

4”
6”
8”
10”
12”
DIP / C-900 OD

4,800”
6.900”
9.050”
11.100”
13.200”
Rod Length

6-1/2”
8-3/4”
10-7/8”
12-7/8”
15”
A

9,800
11.900
14.050
16.100
18.200
B

6.450
8.550
10.700
12.750
14.850
C

5.100
7.200
9.350
11.400
13.500

Size

4”
6”
8”
10”
12”
IPS OD

4.500”
6.625”
8.625”
10.750”
12.750”
Rod Length

6-3/8”
8”
10-1/2”
12-1/2”
14-1/2”
A

9.500
11.625
13.625
15.750
17.750
B

6.150
8.275
10.275
12.400
14.400
C

4.800
6.924
8.924
11.050
13.050
