Double Bolt Pipe Clamp – Fig. 189

For more product information please call (631) 665-9300

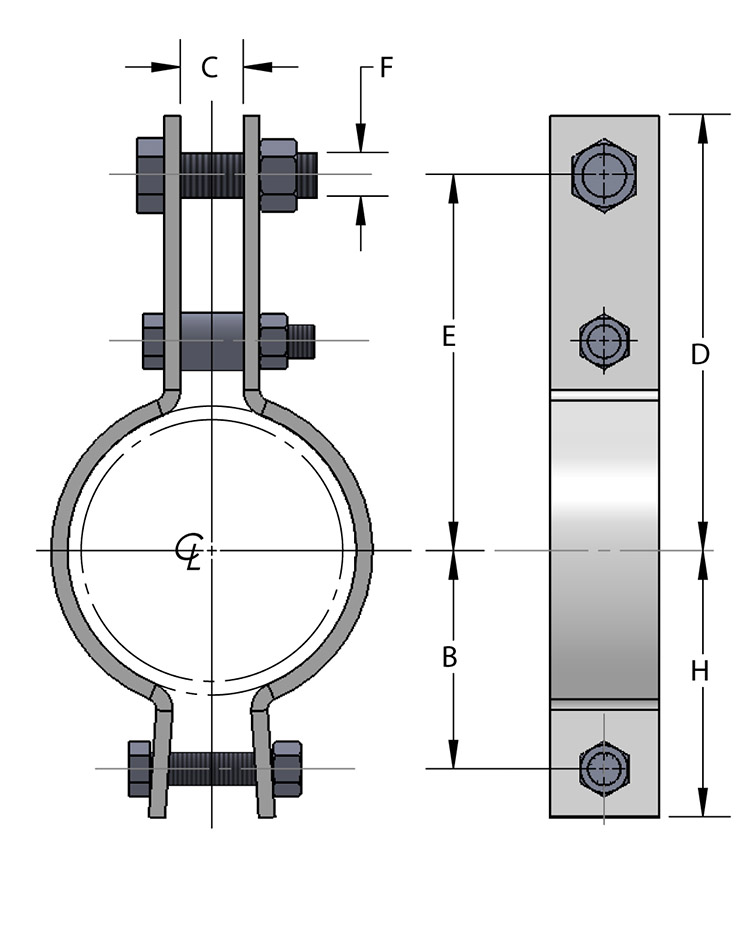

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized.

Service

Designed for the suspension of insulated pipe lines. Normally used with weldless eye nut, figure #13.

Approvals

Complies with Federal Specifications WW-H-171-E (Type# 3), A-A-1192 A (Type# 3), and MSS SP-58 and SP-69 (Type# 3).

Ordering

Specify pipe size, figure number and finish.

Notes

Available in 304 and 316 stainless steel.

Pipe Size

1/2
3/4
1

1 1/4
1 1/2
2

2 1/2
3
3 1/2

4
5
6

8
10
12

14
16
18

20
24
Pipe OD

0.840
1.050
1.315

1.660
1.900
2.375

2.875
3.500
4.000

4.500
5.563
6.625

8.625
10.750
12.750

14.000
16.000
18.000

20.000
24.000
Material Size

8ga x 1.00
8ga x 1.00
8ga x 1.00

8ga x 1.00
4ga x 1.250
4ga x 1.250

4ga x 1.250
4ga x 1.250
4ga x 1.250

3/8 x 2
3/8 x 2
3/8 x 2 1/2

3/8 x 2 1/2
1/2 x 2 1/2
1/2 x 2 1/2

5/8 x 3
5/8 x 3
5/8 x 3

3/4 x 3
3/4 x 3
F Bolt

3/8
3/8
3/8

3/8
5/8
5/8

5/8
5/8
5/8

3/4
3/4
1

1
1
1

1 1/4
1 1/4
1 1/4

1 1/2
1 1/2
B

1
1 1/16
1 3/8

1 1/2
1 15/16
2 3/16

2 7/16
2 3/4
2 7/8

3 1/2
4
5

6
7 1/2
8 1/2

9 3/8
10 3/8
11 3/8

12 3/4
14 3/4
C

5/8
5/8
5/8

5/8
7/8
7/8

7/8
1
1

1 1/16
1 1/16
1 7/16

1 7/16
1 7/16
1 7/16

2
2
2

2
2
D

2 7/8
3
3 3/16

3 1/2
4 11/16
5 9/16

6 7/16
7
7 1/4

7 5/8
8 1/8
9 15/16

10 15/16
12
13

14 5/16
15 5/16
16 5/16

17 1/2
19 1/2
E

2 5/16
2 7/16
2 5/8

12 15/16
3 13/16
4 11/16

5 9/16
6 1/8
6 3/8

6 1/2
7
8 9/16

9 9/16
10 5/8
11 5/8

12 11/16
13 11/16
14 11/16

15 7/8
17 7/8
H

1 9/16
1 5/8
1 15/16

2 1/16
2 13/16
3 1/16

3 5/16
3 5/8
3 3/4

4 1/2
5
6 1/8

7 1/8
8 7/8
9/78

11
12
13

14 3/8
16 3/8
Wgt Each (lbs)

0.540
0.570
0.605

0.675
1.715
1.925

2.115
2.260
2.365

7.50
8.13
13.11

14.67
21.67
23.83

37.50
41.00
46.46

60.00
70.43
Max REC Load (lbs)

950
950
950

950
1545
1545

1545
1545
1545

2500
2500
2865

2865
3240
3240

4300
4300
4300

5490
4500
