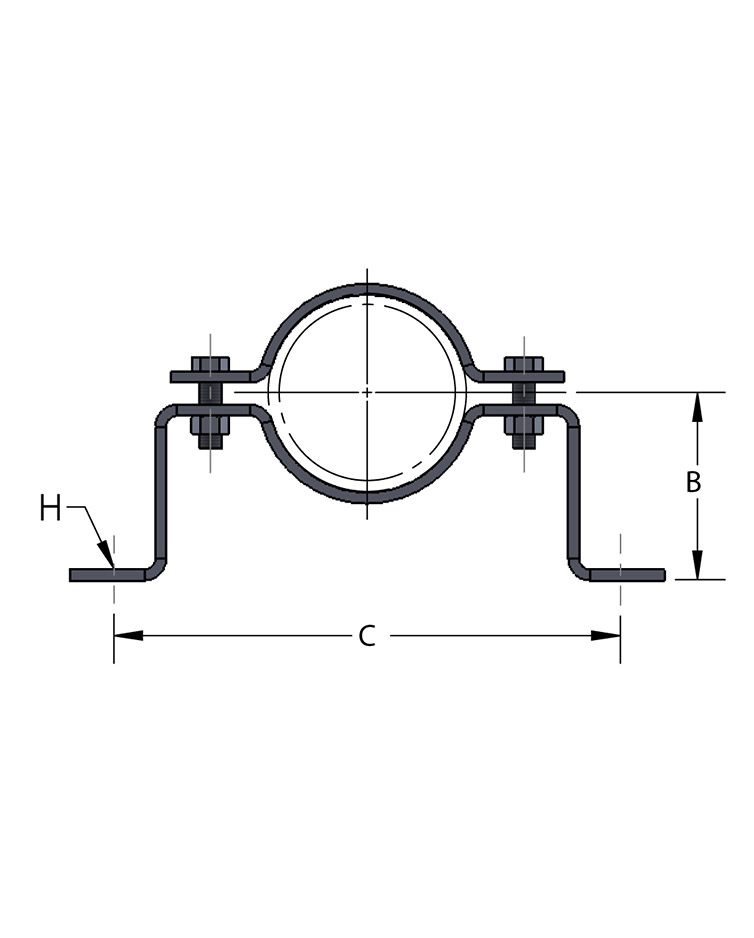

Offset Pipe Clamp – Fig. 95

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Carbon steel. Also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized.

Service

Designed for supporting horizontal or vertical pipe lines at a fixed distance from wall or floor. This clamp can be furnished with "B" dimensions to suit field conditions.

Approvals

There are no approval options for this product.

Ordering

Specify pipe size, figure number and finish.

Notes

There are no notes for this product.

Pipe Size

3/4
1
1 1/4

1 1/2
2
2 1/2

3
3 1/2
4

5
6
8
Pipe OD

1.050
1.315
1.660

1.900
2.375
2.875

3.500
4.000
4.500

5.563
6.625
8.625
Material Size

1 1/4 x 1/4
1 1/4 x 1/4
1 1/4 x 1/4

1 1/4 x 1/4
1 1/4 x 1/4
1 1/4 x 1/4

1 1/4 x 1/4
1 1/4 x 1/4
1 1/2 x 1/4

1 1/2 x 1/4
1 1/2 x 3/8
1 1/2 x 3/8
Bolt

3/8
3/8
3/8

3/8
3/8
3/8

3/8
3/8
1/2

1/2
1/2
1/2
B

2 1/2
2 5/8
2 13/16

2 15/16
3 3/16
3 7/16

3 3/4
4
4 1/4

4 3/4
5 5/16
6 5/16
C

7 3/16
7 9/16
7 7/8

8 1/4
9 1/8
10 1/2

11 1/8
11 5/8
12 1/2

13 3/4
16 1/2
18 5/8
H

7/16
7/16
7/16

7/16
7/16
7/16

7/16
7/16
9/16

9/16
9/16
9/16
Wgt Each (lbs)

1.25
1.33
1.42

1.49
2.03
2.25

2.50
2.75
3.68

4.25
6.80
8.20
Max REC Load (lbs)

200
200
200

200
410
410

410
410
600

600
850
850

Offset Pipe Clamp – Fig. 95

Pipe Size

Pipe OD

Material Size

Bolt

B

C

H

Wgt Each (lbs)

Max REC Load (lbs)
