Short Arm Riser Clamp – Fig. 50SA

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized.

Service

Designed for supporting and stabilizing vertical pipe runs. Overall length of clamp is shorter than standard to accommodate field requirements.

Approvals

Complies with Federal Specification WWH-171-E (Type# 8), A-A-1192A (Type# 8), Manufacturers' Standardization Society SP-58 and MSS SP-69 (Type# 8).

Ordering

Specify pipe size, figure number and finish.

Notes

There are no notes for this product.

  • Pipe Size
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    4
    5
    6
  • Pipe OD
    1.315
    1.660
    1.900
    2.375
    2.875
    3.500
    4.500
    5.563
    6.625
  • Material Size
    8ga x 1.0
    8ga x 1.0
    8ga x 1.0
    8ga x 1.0
    8ga x 1.0
    8ga x 1.0
    3ga x 1.0
    3ga x 1.5
    3ga x 1.5
  • Bolt
    5/16
    5/16
    5/16
    5/16
    3/8
    3/8
    1/2
    1/2
    1/2

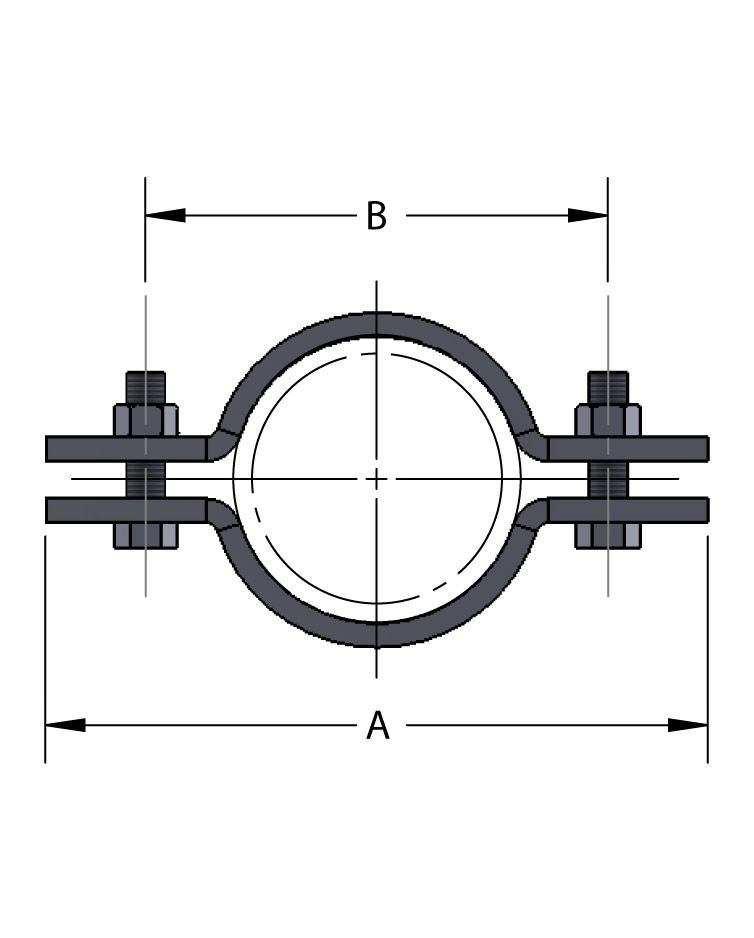

  • A
    4 11/16
    5 1/16
    5 1/2
    6
    6 5/8
    7 5/16
    8 9/16
    9 3/4
    10 7/8
  • B
    2 11/16
    3 3/16
    3 1/2
    4
    4 5/8
    5 5/16
    6 9/16
    7 3/4
    8 7/8
  • Wgt Each (lbs)
    0.50
    0.58
    0.60
    0.60
    1.12
    1.18
    1.54
    2.64
    2.80
  • Max REC Load (lbs)
    170
    260
    260
    260
    260
    260
    450
    770
    770
