Standard Riser Clamp sized for DIP – Fig. 50DIP

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Carbon steel, also available in 304 (50SS) and 316 (50SX) stainless steel.

Finish

Plain

Service

Designed for supporting and stabilizing vertical pipe runs.

Approvals

U.L. - U.L.C. listed (sizes 2" - 8"). Complies with Federal Specification WW-H-171-E (Type# 8), A-A-1192 A (Type# 8) and Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 8).

Ordering

Specify pipe size, figure number and finish.

Notes

There are not any notes for this product

Pipe Size

3

4

6

8

10

12
Pipe OD

3.96

4.80

6.90

9.05

11.10

13.20
Material Size

8ga x 1

3ga x 1.0

3ga x 1.5

3/8 x 1.5

3/8 x 2.0

1/2 x 2.0
Bolt

3/8

1/2

1/2

5/8

5/8

5/8

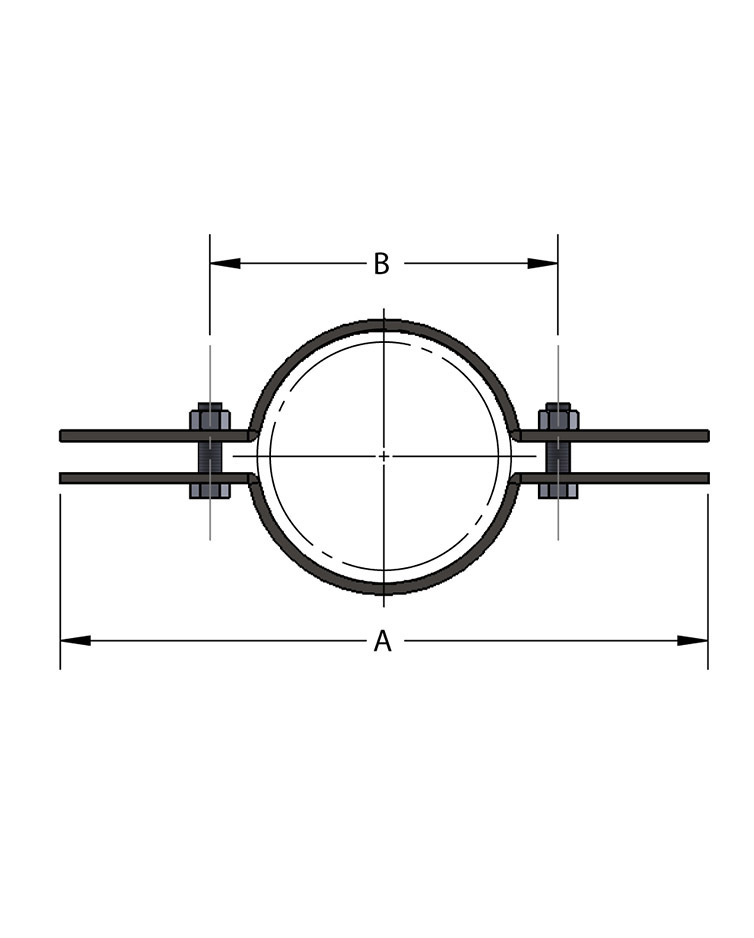

A

11 13/16

13 5/8

15 3/8

18 5/8

21

22 3/4
B

5 1/4

6 5/8

8 7/8

12

14 1/2

16 3/4
Wgt Each (lbs)

1.70

2.20

3.72

7.22

10.94

16.10
Max REC Load (lbs)

500

750

1600

2500

2500

2700

Standard Riser Clamp sized for DIP – Fig. 50DIP

Pipe Size

Pipe OD

Material Size

Bolt

A

B

Wgt Each (lbs)

Max REC Load (lbs)
