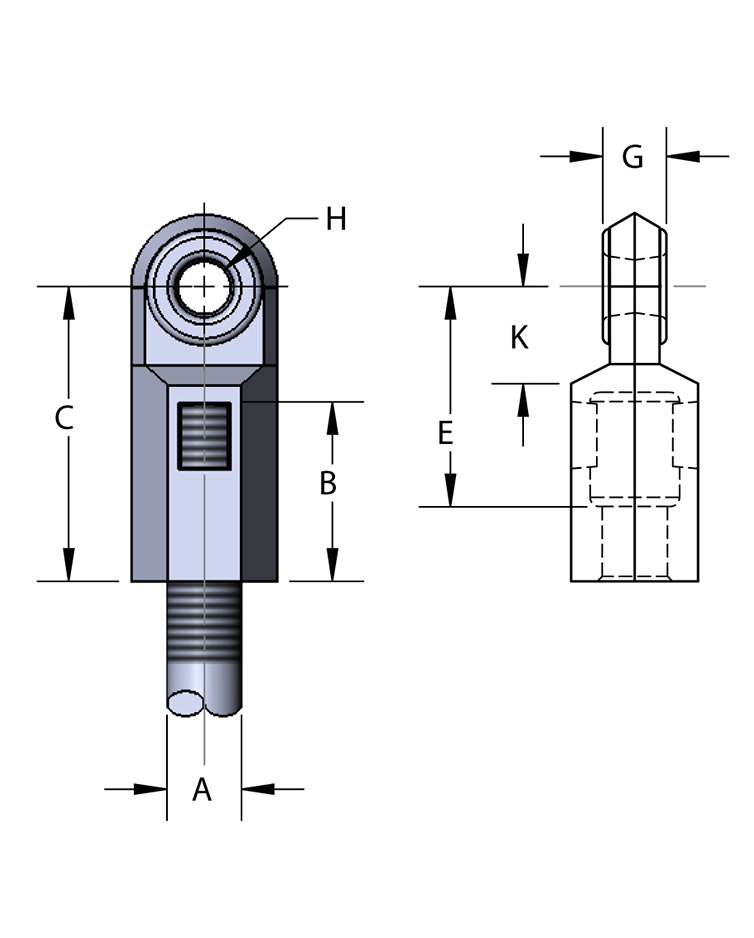

Extension Piece – Fig. 157

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Cast iron.

Finish

Plain or electro-galvanized.

Service

Designed for attaching hanger rod to various type of attachments. Allows a 1 inch vertical adjustment of the rod.

Approvals

There are no approval options for this product.

Ordering

Specify rod size, figure number and finish.

Notes

There are no notes for this product.

  • Size A
    3/8-16
    1/2-13
    5/8-11
    3/4-10
    7/8-9
  • Pipe Size
    1/2 to 2
    2 1/2 to 3 1/2
    4 to 5
    6
    8 to 12
  • B
    1 5/16
    1 7/16
    1 9/16
    1 7/8
    2
  • C
    2 1/16
    2 5/16
    2 7/16
    2 7/8
    3 1/16
  • E
    1 3/16
    1 5/16
    1 7/16
    1 9/16
    1 11/16
  • G
    1/2
    5/8
    5/8
    5/8
    3/4
  • H
    1/2
    1/2
    1/2
    1/2
    9/16
  • K
    9/16
    11/16
    3/4
    7/8
    7/8
  • Wgt Each (lbs)
    0.19
    0.41
    0.42
    0.68
    0.78
  • Max Rec Load (lbs)
    610
    1130
    1810
    2710
    2950
Items Commonly Used With
products
Weldless Eyenut, Left Hand
Fig. 13l
products
Weldess Eyenut, Right Hand
Fig. 13
products
Clamp with Extension Piece
Fig. 229
products
Center Load Beam Clamp
Fig. 218
