Weldless Eyenut, Right Hand Threads – Fig. 13I

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Forged carbon steel, also available in 316 stainless steel.

Finish

Plain, electro-galvanized, hot-dip galvanized.

Service

Designed for use on high temperature piping applications.

Approvals

Complies with Federal Specifications WW-H-171-E (Type# 17), A-A-1192 A (Type# 17), and Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 17).

Ordering

Specify rod size, figure number and finish.

Notes

Supports loads equal to the full limitation of the hanger rod. When figure 13I is supplied in hot-dip galvanized finish, it is not tapped over-sized.

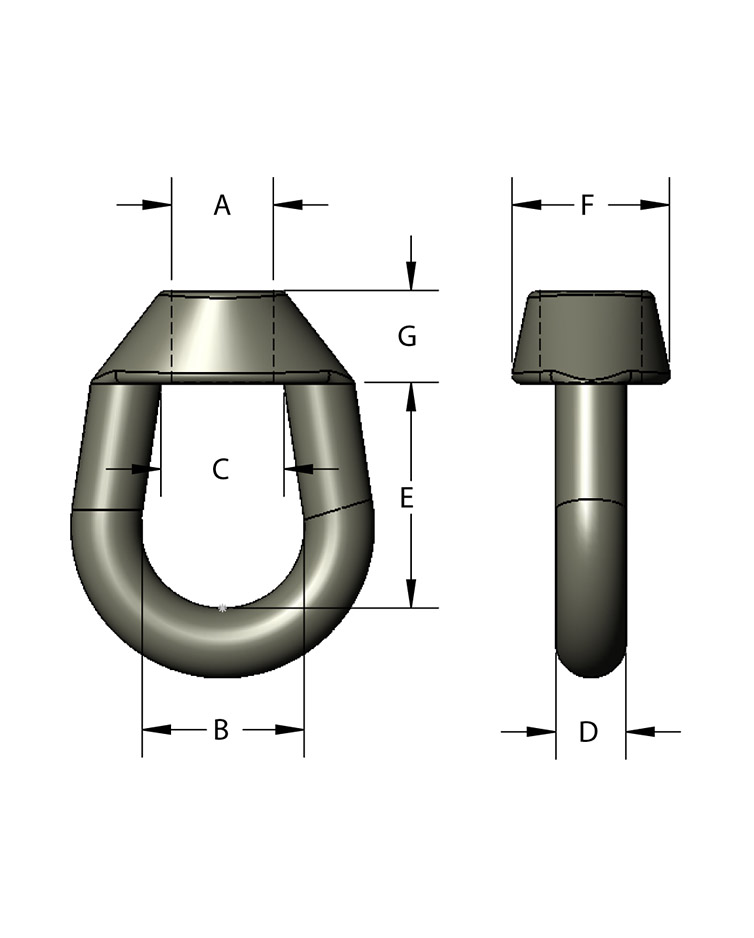

  • Size A
    3/8-16
    1/2-13
    5/8-11
    3/4-10
    7/8-9
    1-8
    1 1/8-7
    1 1/4-7
    1 1/2-6
  • B
    1 1/4
    1 1/4
    1 1/2
    1 1/2

    2
    2 1/2
    2 1/2
    2 1/2
  • C
    13/16
    13/16
    1 3/16
    1 3/16
    1 13/16
    1 13/16
    1 13/16
    1 13/16
    1 13/16
  • D
    3/8
    3/8
    1/2
    1/2
    3/4
    3/4


    1
  • E
    1 9/16
    1 9/16
    2

    2 3/8
    2 3/8
    3 3/8
    3 3/8
    3 3/8
  • F


    1 3/8
    1 3/8
    1 15/16
    1 15/16
    2 3/8
    2 3/8
    2 3/8
  • G
    5/8
    5/8
    11/16
    11/16

    1
    1 1/4
    1 1/4
    1 1/4
  • Wgt Each (lbs)
    0.23
    0.55
    0.52
    1.70
    1.70
    1.70
    3.70
    3.50
    3.50
Max Rec Load (lbs)
  • 650 degrees F
    610
    1130
    1810
    2710
    3770
    4960
    6230
    8000
    11630
  • 750 degrees F
    540
    1010
    1610
    2420
    3360
    4420
    5560
    7140
    10370
