Hardware
-
Washers
Round Steel Washers – Fig. 52
Material: Carbon steel (304 and 316 stainless steel).
Finish: Plain, electro-galvanized or hot-dip galvanized.
Service: There are no service notes for this product.
Approvals: There are no approval options for this product.
Ordering: Specify size, figure number and finish.
Notes: Available packaged and bulk.
Fender Washer – Fig. 52F
Material: Carbon steel (304 and 316 stainless steel).
Finish: Electro-galvanized.
Service: Designed to produce a greater bearing surface.
Approvals: There are no approval options for this product.
Ordering: Specify size and figure number.
Notes: There are no notes for this product.
Lock Washer – Fig. 52L
Material: Carbon steel (304 and 316 stainless steel).
Finish: Plain or electro-galvanized.
Service: There are no service notes for this product.
Approvals: There are no approval options for this product.
Ordering: Specify size, figure number and finish.
Notes: There are no notes for this product.
Bevel Washer – Fig. 72
Material: Malleable iron.
Finish: Plain or electro-galvanized.
Service: Designed to compensate for taper of "S" shape beam flanges so that bearing...
Approvals: There are no approval options for this product.
Ordering: Specify bolt size, finish and figure number.
Notes: There are no notes for this product.
Steel Washer Plate – Fig. 75
Material: Carbon steel (304 and 316 stainless steel).
Finish: Plain, electro-galvanized.
Service: Designed as a heavy duty washer to suspend hanger rods.
Approvals: There are no approval options for this product.
Ordering: Specify rod size, thickness, length and width, and figure number.
Notes: Other sizes and dimensions available on request.
Socket Clamp Washer – Fig. 599
Material: Cast Iron/Carbon steel (see notes).
Finish: Plain, electro-galvanized.
Service: Designed to be used with figure 600 socket clamp, washer lugs hook around...
Approvals: There are no approval options for this product.
Ordering: Specify size, figure number and finish.
Notes: The 3/4" rod size socket clamp washer is a cast iron product with tab feature...
Ductile Lug – Fig. 599a
Material: Ductile iron per ASTM A536, Grade 65-45-12
Finish: Plain
Service: Restriant of MJ Fittings 4" - 24" Accomodates 3/4" rod
Approvals: There are no approval options for this product.
Ordering: Specify size, figure number and finish.
Notes: There are no notes for this product.
Square Strut Washer 1-5/8” x 1-5/8” – Fig. 9001FF
Material: 1/4”
Finish: Electro-Galvanized, SST 316 & 304
Hole Dim: 9/16”
Square Washer with Guides 1-5/8” x 1-5/8” – Fig. 9002FF
Material: 1/4”
Finish: Electro-Galvanized, SST 316 & 304
Hole Dim: 9/16”
11 GA. “U” Saddle Washer 1-5/8” Wide with 15/32” Return Plated – Fig UW-450
-

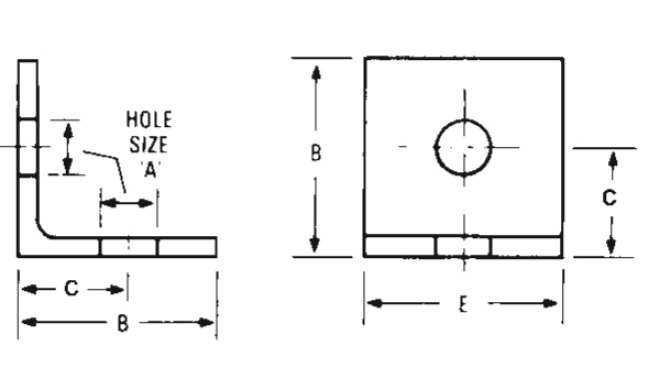

angle bracket-fig53.jpg
Angle Bracket - Fig. 53
Material: Carbon steel, also available in 304 and 316 stainless steel
Finish: Plain or electro galvanized.
Service: Designed for attaching hanger rod to the side of beams or walls.
Approvals: Complies with Federal specification WW-H-171E(Type#35), A-A-1192 A(Type#34), and MSS SP-58 and 7SP-69(Type#34).
Ordering: Specify rod size, figure number and finish.
Notes: There are no notes for this product.
