Click the image to make it larger
Cast Iron/Carbon steel (see notes).
Plain, electro-galvanized.
Designed to be used with figure 600 socket clamp, washer lugs hook around clamp bolts to secure tie rods within clamp legs.
There are no approval options for this product.
Specify size, figure number and finish.

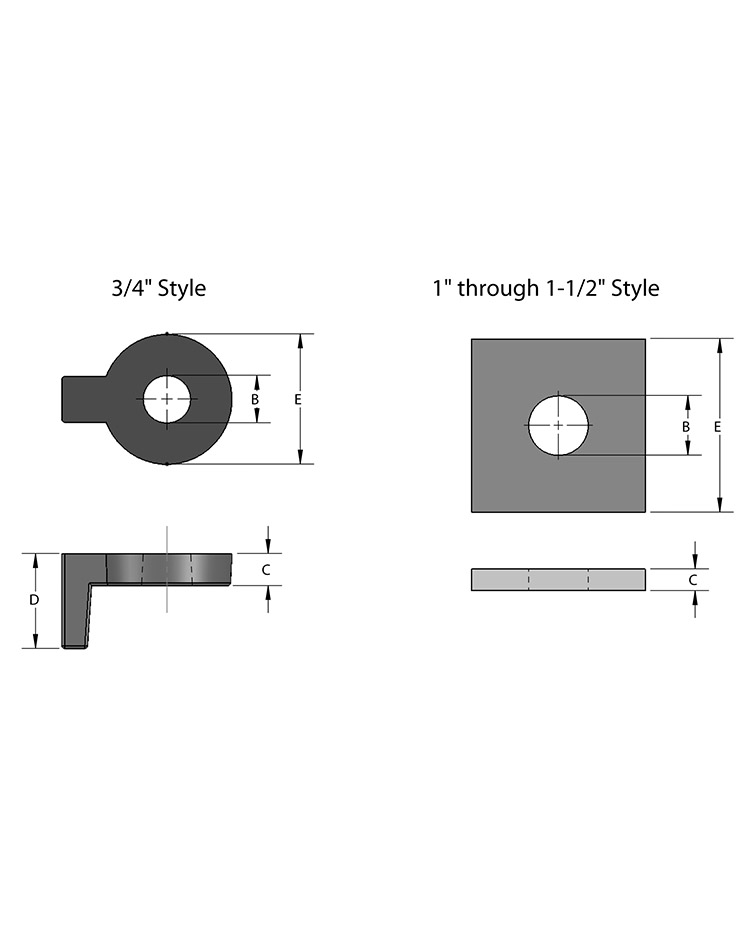

The 3/4" rod size socket clamp washer is a cast iron product with tab feature. This accommodates pipe sizes 4"-12". The 1"-11/2" rod size washer are a carbon steel flat style. these accommodate pipe sizes 14"-24".
