Bevel Washer – Fig. 72

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Cast iron.

Finish

Plain or electro-galvanized.

Service

Designed to compensate for taper of "S" shape beam flanges so that bearing surface of bolt or nut will sit flush.

Approvals

There are no approval options for this product.

Ordering

Specify bolt size, finish and figure number.

Notes

There are no notes for this product.

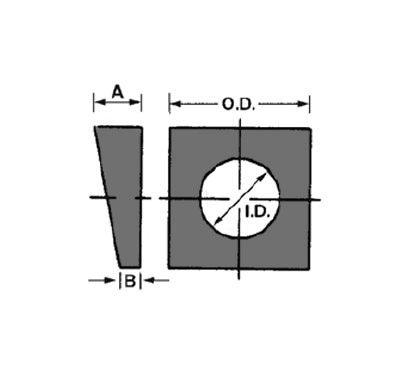

  • Size A
    3/8
    1/2
    5/8
    3/4
    7/8
  • OD
    1 1/4
    1 1/4
    1 1/2
    1 1/2
    2
  • ID
    7/16
    9/16
    11/16
    13/16
    15/16
  • Thickness A
    11/32
    11/32
    13/32
    15/32
    9/16
  • Thickness B
    5/32
    5/32
    5/32
    7/32
    7/32
  • Wgt Each (lbs)
    0.09
    0.09
    0.14
    0.16
    0.34
