Pipe Alignment Guide (Single Spider Clamp) – Fig. 255

For more product information please call (631) 665-9300

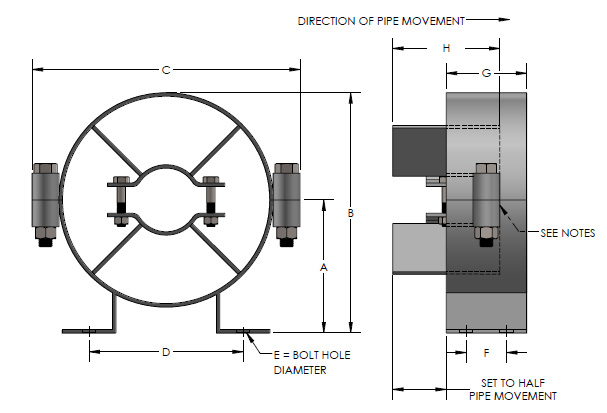

Diagram Notes

Click the image to make it larger

Download Submittal
Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized, or painted.

Service

Designed for use with insulated or non-insulated pipe lines to maintain alignment of piping through axial expansion and contraction cycles. Proper alignment of the adjoining pipe is of vital importance in the proper functioning of expansion joints in the line. Pipe guides are not designed to support any piping system weight. Therefore additional supports are required. Therefore the use of two or more guides on both sides of the expansion joint is recommended to avoid a pivoting effect in the line. Maximum temperature: 650°F.

Approvals

There are no approval options for this product.

Ordering

Specify pipe size, insulation thickness, figure number and size number.

Notes

There are no notes for this product.

  • Model
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
  • A
    3-1/2"
    4"
    4-3/8"
    5-1/4"
    6-1/4"
    7"
    7-7/8"
    8-7/8"
    9-3/4"
    10-7/8"
    12-1/8"
    13"
    14-3/4"
    16-1/2"
  • B
    5-7/8"
    6-3/4"
    7-5/8"
    9-1/4"
    11-5/8"
    13-3/8"
    15-1/8"
    17"
    18-3/4"
    21"
    23-1/8"
    25"
    27-3/4"
    31-1/2"
  • C
    6-1/8"
    7-1/8"
    8-1/8"
    10-1/8"
    12-1/8"
    14-1/8"
    16-1/8"
    18-1/8"
    20-1/8"
    22-1/8"
    24-1/8"
    26-1/8"
    28-1/8"
    32-1/8"
  • D
    4-1/8"
    4-3/8"
    5-1/8"
    6-1/8"
    7"
    8-1/4"
    9-7/8"
    10-7/8"
    11-7/8"
    11-3/4"
    14-1/2"
    15-1/2"
    17-1/8"
    19-1/4"
  • E
    5/8"
    5/8"
    5/8"
    5/8"
    5/8"
    5/8"
    3/4"
    3/4"
    3/4"
    3/4"
    7/8"
    7/8"
    1-1/8"
    1-1/8"
  • F
    1-3/4"
    1-3/4"
    1-3/4"
    1-3/4"
    2-3/4"
    2-3/4'
    4"
    4"
    4"
    4"
    6"
    6"
    6"
    6"
  • G
    3"
    3"
    3"
    3"
    4"
    4"
    6"
    6"
    6"
    6"
    8"
    8"
    8"
    8"
  • H
    4"
    4"
    4"
    4"
    6"
    6"
    8"
    8"
    8"
    8"
    8"
    8"
    12"
    12"
  • Wgt Each (lbs)
    7
    8
    9
    11
    17
    20
    40
    48
    54
    61
    89
    102
    110
    150
Guide Size Selection Table
  • Pipe Size
    1/2"
    3/4"
    1"
    1-1/4"
    1-1/2"
    2"
    2-1/2"
    3"
    4"
    5"
    6"
    8"
    10"
    12"
    14"
    16"
    18"
    20"
    24"
Insulation Thickness (in)
  • 1
    23
    23
    23
    23
    24
    24
    25
    25
    26
    27
    27
    28
    30
    31
    32
    33
    34
    35
    36
  • 1 1/2
    23
    24
    24
    24
    24
    25
    25
    26
    26
    27
    27
    28
    30
    31
    32
    33
    34
    35
    36
  • 2
    24
    25
    25
    25
    25
    26
    26
    26
    27
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
  • 2 1/2
    26
    26
    26
    26
    26
    26
    26
    27
    27
    28
    28
    30
    31
    32
    32
    33
    34
    35
    36
  • 3
    26
    26
    26
    26
    26
    27
    27
    27
    28
    28
    29
    30
    31
    32
    33
    34
    35
    36
    -
  • 3 1/2
    26
    27
    27
    27
    27
    27
    27
    28
    28
    29
    30
    31
    32
    33
    33
    34
    35
    36
    -
  • 4
    27
    27
    27
    27
    27
    28
    28
    28
    29
    30
    30
    31
    32
    33
    34
    35
    -
    36
    -
