316 Stainless Steel Split Ring Extension Hanger

316 Stainless Steel Split Ring Extension Hanger – Fig. 41SXI

For more product information please call (631) 665-9300

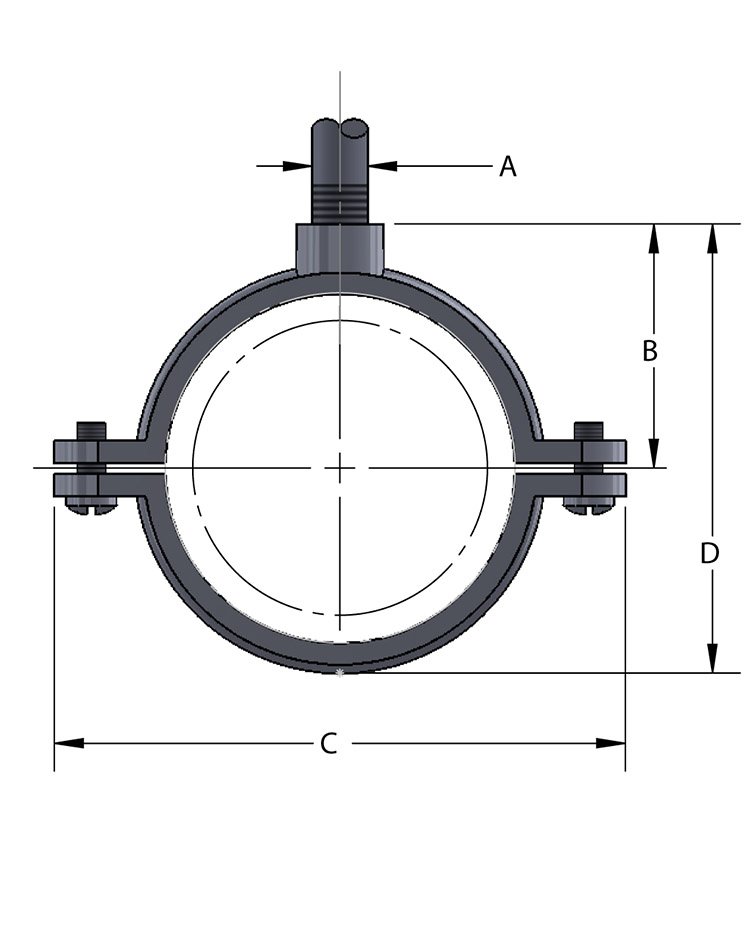

Diagram Notes

There are currently no diagram notes for this product.

Material

304 (41SSI) and 316 (41SXI) stainless steel.

Finish

There are no Finish options for this product.

Service

Designed for the suspension of non-insulated stationary pipe lines, horizontally or vertically.

Approvals

Complies with Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 12).

Ordering

Specify pipe size, material, and figure number.

Notes

304 and 316 stainless steel are recommended for applications where protection from corrosive environments is needed.
