Split Ring Extension Hanger

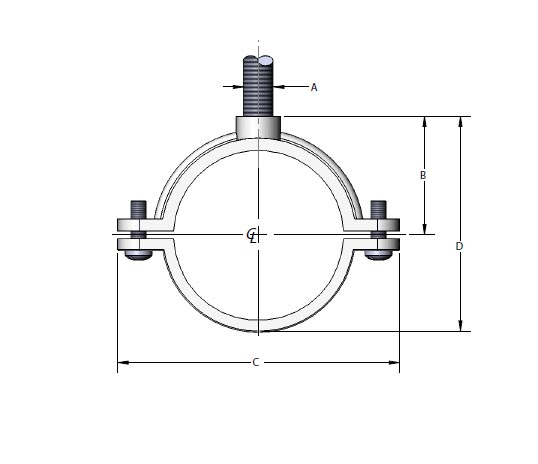

OD Size Split Ring Extension – Fig. 41OD

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

304 and 316 stainless steel.

Service

Designed for the suspension of non-insulated stationary pipe lines horizontally and vertically.

Approvals

Complies Manufacturers' Standardization Society SP-58 and MSS SP-69 (Type# 12).

Ordering

Specify pipe size, figure number and finish.

Notes

Stainless steel hangers are recommended for applications where protection from a corrosive enviroment is required.

OD Size

3/8
5/8
1/2

7/8
1-1/8
1-3/8

1-5/8
2-1/8
2-5/8

3-1/8
4-1/8
Screw

10-24
10-24
10-24

10-24
10-24
10-24

10-24
10-24
1/4

1/4
1/4
A

3/8-16
3/8-16
3/8-16

3/8-16
3/8-16
3/8-16

3/8-16
3/8-16
1/2-13

1/2-13
1/2-13
B

9/16
11/16
5/8

13/16
15/16
1-1/8

1-1/4
1-1/2
2

2-1/4
2-13/16
C

1-13/16
1-15/16
1-13/16

2-1/4
2-9/16
2-7/8

3
3-9/16
4-11/16

5-13/16
6-3/8
D

7/8
1-1/16
1-1/16

1-7/16
1-5/8
1-15/16

2-3/16
2-5/8
3-9/16

4-3/16
3-9/16
Wgt Each (lbs)

0.01
0.01
0.01

0.02
0.02
0.02

0.03
0.03
0.05

0.09
0.15
Max REC Load (lbs)

180
180
180

180
180
180

180
300
300

300
300
