Industrial Threaded Products
Hangers
-
Band & Swivel Hangers
-
Fig. 310CTI
(631)665-9300

Adjustable Swivel Ring Hanger

Epoxy Coated (Copper Gard) Copper Tubing  “EM-LOK” Adjustable Swivel Ring Hanger, Domestic – Fig. 310CTI

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Carbon steel.

Finish

Copper plated (310CT) or Copper epoxy coated (COPPER-GARD).

Service

Designed for the suspension of non-insulated, stationary copper lines.

Approvals

Complies with Federal Specification WW-H-171-E (Type# 10), A-A-1192 A (Type# 10) and Manufacturers'Standardization Society MSS SP-58 and SP-69 (Type# 10).

Ordering

Specify tubing size and figure number.

Notes

There are no notes for this product.

  • Tube Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
    5
    6
  • Tube OD
    0.625
    0.875
    1.125
    1.375
    1.625
    2.125
    2.625
    3.125
    3.625
    4.125
    5.125
    6.125
  • Material Size
    18ga x 5/8
    18ga x 5/8
    18ga x 5/8
    18ga x 5/8
    18ga x 5/8
    18ga x 5/8
    14ga x 1
    14ga x 1
    14ga x 1
    14ga x 1
    14ga x 1
    14ga x 1

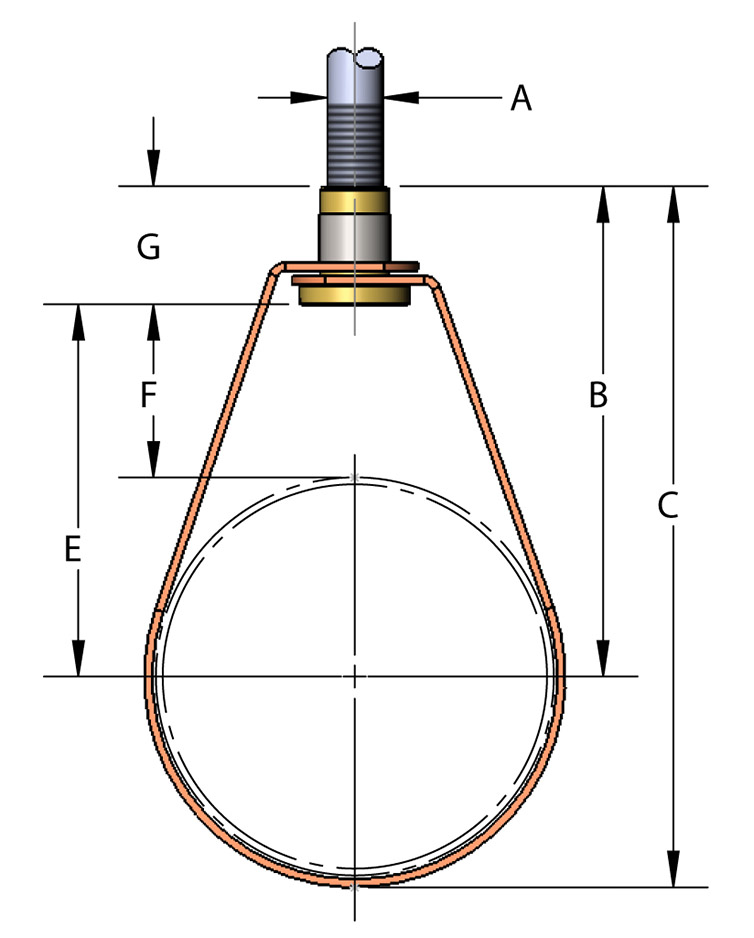

  • A
    3/8
    3/8
    3/8
    3/8
    3/8
    3/8
    1/2
    1/2
    1/2
    1/2
    1/2
    1/2
  • B
    2 11/16
    2 1/2
    2 7/8
    2 1/2
    2 9/16
    3 5/16
    3 7/8
    4 3/16
    4 9/16
    4 13/16
    5 3/16
    5 11/16
  • C
    3
    2 15/16
    3
    3 3/16
    3 3/8
    4 3/8
    5 9/16
    5 3/4
    6 3/8
    6 15/16
    7 13/16
    8 15/16
  • E
    1 13/16
    1 5/8
    1 9/16
    1 5/8
    1 11/16
    2 7/16
    2 13/16
    3 1/8
    3 1/2
    3 3/4
    4 1/8
    4 5/8
  • F
    1 1/2
    1 3/16
    1
    15/16
    7/8
    1 3/8
    1 1/2
    1 9/16
    1 11/16
    1 11/16
    1 9/16
    1 9/16
  • G
    7/8
    7/8
    7/8
    7/8
    7/8
    7/8
    1 1/16
    1 1/16
    1 1/16
    1 1/16
    1 1/16
    1 1/16
  • Wgt Each (lbs)
    0.070
    0.070
    0.070
    0.080
    0.085
    0.100
    0.310
    0.345
    0.375
    0.410
    0.475
    0.530
  • Max REC Load (lbs)
    300
    300
    300
    300
    300
    300
    525
    525
    525
    650
    1000
    1000
