Industrial Threaded Products
Hangers
-
Band & Swivel Hangers
-
Fig. 310CT
(631)665-9300

Adjustable Swivel Ring Hanger

Copper Tubing “EM-LOK” Adjustable Swivel Ring Hanger, Domestic – Fig. 310CT

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Copper plated (310CT) or Copper epoxy coated (COPPER-GARD).

Service

Designed for the suspension of non-insulated, stationary copper lines.

Approvals

Complies with Federal Specification WW-H-171-E (Type# 10), A-A-1192 A (Type# 10) and Manufacturers'Standardization Society MSS SP-58 and SP-69 (Type# 10).

Ordering

Specify tubing size and figure number.

Notes

There are no notes for this product.

  • Tube Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
    5
    6
  • Tube OD
    0.625
    0.875
    1.125
    1.375
    1.625
    2.125
    2.625
    3.125
    3.625
    4.125
    5.125
    6.125
  • Material Size
    18ga x 5/8
    18ga x 5/8
    18ga x 5/8
    18ga x 5/8
    18ga x 5/8
    18ga x 5/8
    14ga x 1
    14ga x 1
    14ga x 1
    14ga x 1
    14ga x 1
    14ga x 1

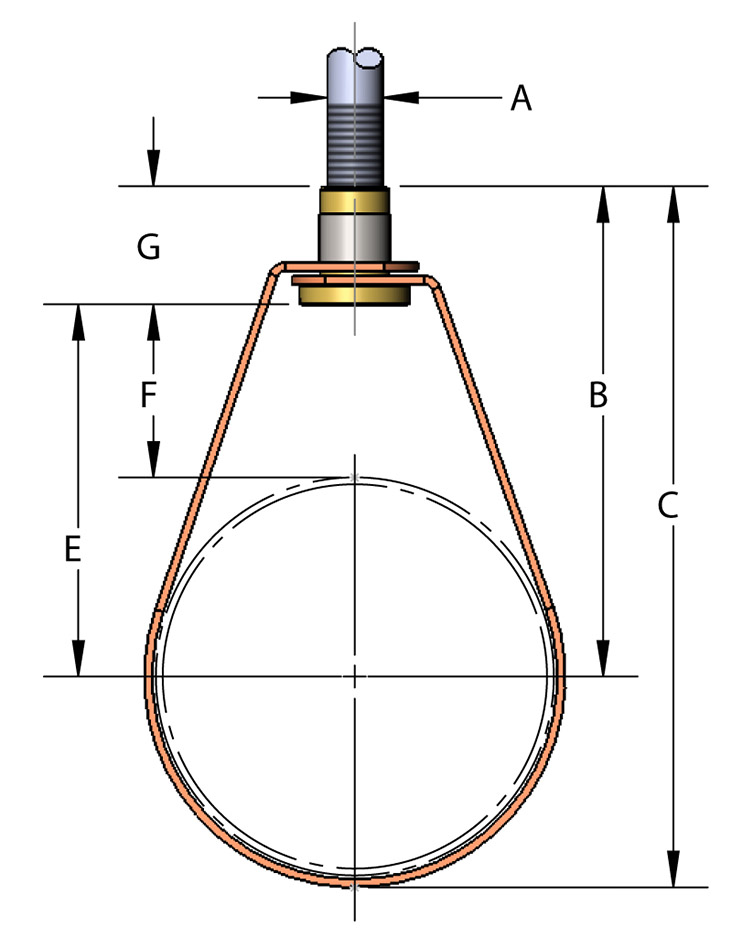

  • A
    3/8
    3/8
    3/8
    3/8
    3/8
    3/8
    1/2
    1/2
    1/2
    1/2
    1/2
    1/2
  • B
    2 11/16
    2 1/2
    2 7/8
    2 1/2
    2 9/16
    3 5/16
    3 7/8
    4 3/16
    4 9/16
    4 13/16
    5 3/16
    5 11/16
  • C
    3
    2 15/16
    3
    3 3/16
    3 3/8
    4 3/8
    5 9/16
    5 3/4
    6 3/8
    6 15/16
    7 13/16
    8 15/16
  • E
    1 13/16
    1 5/8
    1 9/16
    1 5/8
    1 11/16
    2 7/16
    2 13/16
    3 1/8
    3 1/2
    3 3/4
    4 1/8
    4 5/8
  • F
    1 1/2
    1 3/16
    1
    15/16
    7/8
    1 3/8
    1 1/2
    1 9/16
    1 11/16
    1 11/16
    1 9/16
    1 9/16
  • G
    7/8
    7/8
    7/8
    7/8
    7/8
    7/8
    1 1/16
    1 1/16
    1 1/16
    1 1/16
    1 1/16
    1 1/16
  • Wgt Each (lbs)
    0.070
    0.070
    0.070
    0.080
    0.085
    0.100
    0.310
    0.345
    0.375
    0.410
    0.475
    0.530
  • Max REC Load (lbs)
    300
    300
    300
    300
    300
    300
    525
    525
    525
    650
    1000
    1000
