Industrial Threaded Products
Hangers
-
Band & Swivel Hangers
-
Fig. 31
(631)665-9300

Band Hanger

Band Hanger – Fig. 31

For more product information please call (631) 665-9300

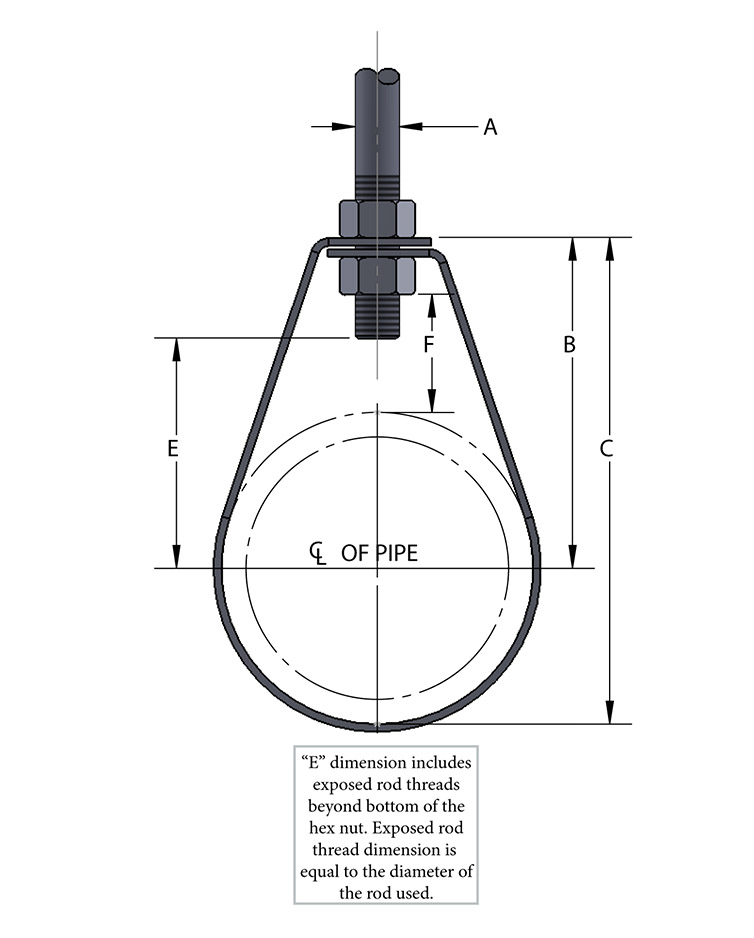

Diagram Notes

"E" dimension includes exposed rod threads beyond bottom of the hex nut.
Exposed rod thread dimension is equal to the diameter of the rod used.

Download Submittal
Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized, plastic coated.

Service

Designed for the suspension of non-insulated stationary pipe lines. The plastic coated band hanger protects the pipe from the steel surface of the hanger and is designed to reduce noise, vibration and prevents electrolysis between pipe and the hanger. Stainless steel hangers are recommended for applications where protection from corrosive environments is needed.

Approvals

Complies with Federal Specification WWH-171-E (Type# 7), A-A-1192A (Type# 7), Manufacturers' Standardization Society SP-58 and MSS SP-69 (Type# 7).

Ordering

Specify pipe size, figure number, and finish.

Notes

Upper locknut must be tightened securely to assure proper hanger performance.

  • Pipe Size
    3/8
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
    5
    6
    8
  • Pipe OD
    0.675
    0.840
    1.050
    1.315
    1.660
    1.900
    2.375
    2.875
    3.500
    4.000
    4.500
    5.563
    6.625
    8.625
  • Material Size
    16ga x 0.875
    16ga x 0.875
    16ga x 0.875
    16ga x 0.875
    16ga x 0.875
    16ga x 0.875
    16ga x 0.875
    14ga x 1.0
    13ga x 1.0
    13ga x 1.0
    11ga x 1.0
    11ga x 1.0
    11ga x 1.5
    11ga x 1.5
  • A
    3/8
    3/8
    3/8
    3/8
    3/8
    3/8
    3/8
    1/2
    1/2
    1/2
    1/2
    1/2
    3/4
    3/4
  • B
    2 1/4
    2 3/16
    2
    2 3/16
    2 5/16
    2 3/8
    2 3/16
    3 3/8
    3 3/4
    4 3/16
    4 5/8
    5 1/16
    6 3/8
    8 1/16
  • C
    2 5/8
    2 9/16
    2 9/16
    2 13/16
    3 1/8
    3 3/8
    4
    4 13/16
    5 9/16
    6 3/16
    6 15/16
    7 7/8
    9 3/4
    12 7/8
  • E
    1 7/16
    1 3/8
    1 3/16
    1 5/16
    1 1/2
    1 9/16
    2
    2 1/4
    2 5/8
    3 1/16
    3 7/16
    3 15/16
    4 3/4
    6 7/16
  • F
    1 1/2
    1 5/16
    1 1/16
    1 1/16
    1 1/16
    1
    1 3/16
    1 5/16
    1 3/8
    1 9/16
    1 11/16
    1 5/8
    2 3/16
    2 7/8
  • Wgt Each (lbs)
    0.100
    0.100
    0.100
    0.120
    0.120
    0.140
    0.160
    0.280
    0.380
    0.420
    0.600
    0.700
    1.340
    1.640
  • Max REC Load (lbs)
    610
    610
    610
    610
    610
    610
    610
    970
    970
    970
    1130
    1130
    1600
    1800
