Industrial Threaded Products
Hangers
-
Clevis Hangers
-
Fig. 11WS
(631)665-9300

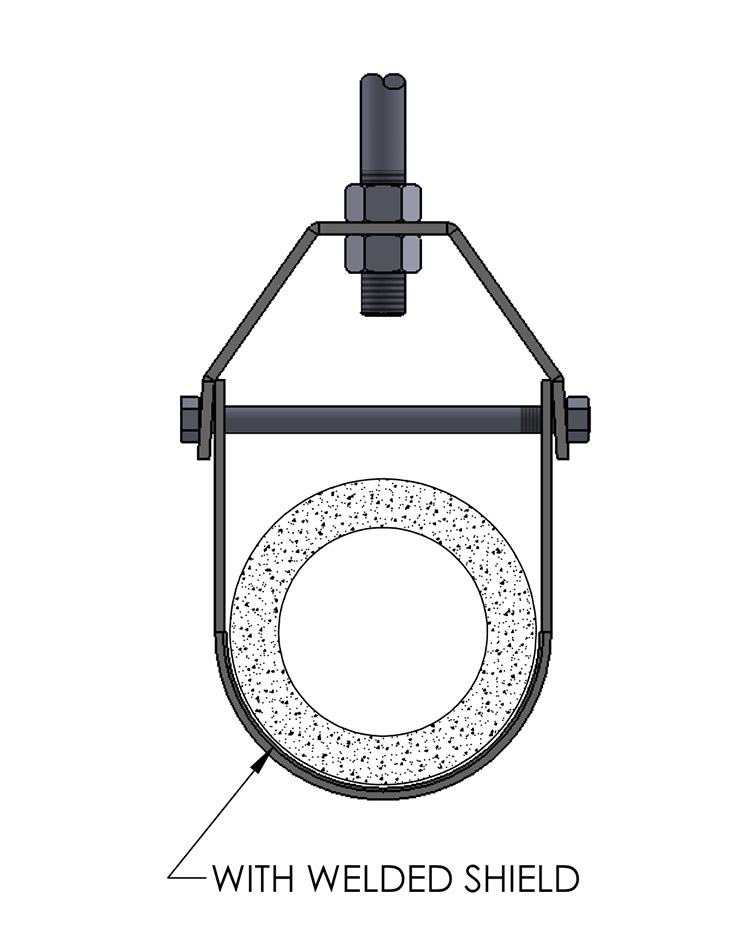

Clevis with Welded Shield

Clevis with Welded Shield – Fig. 11WS

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagrammatic notes for this product.

Download Submittal
Material

Carbon steel clevis hanger with pre-galvanized shield, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized.

Service

Designed for the suspension of stationary insulated pipe lines. Insulation protection shield is spot welded in place.

Approvals

There are no approval options for this product.

Ordering

Specify hanger size number and figure number.

Notes

To determine proper hanger size use hanger selection guide below. Upper locknut must be tightened securely to assure proper hanger performance.

  • Pipe Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
    5
    6
    8
    10
    12
    14
    16
Thickness of Pipe Insulation
  • Pipe Size
    1/2
    3/4
    1
    1 1/4
    1 1/2
    2
    2 1/2
    3
    3 1/2
    4
    5
    6
    8
    10
    12
    14
    16
  • 1/2”
    1 1/2
    2
    2
    2 1/2
    2 1/2

    3 1/2
    4
    5
    5
    6
    7
    10
    12
    14
    16
    18
  • 1”
    2 1/2
    3
    3
    3 1/2
    3 1/2
    4
    5
    5
    6
    6
    7
    8
    10
    12
    16
    16
    18
  • 1 1/2”
    3 1/2
    3 1/2
    4
    4
    5
    5
    6
    6
    7
    7
    8
    10
    12
    14
    16
    18
    20
  • 2”
    5
    5
    5
    5
    6
    6
    7
    7
    8
    8
    10
    10
    12
    16
    18
    18
    20
  • 2 1/2”
    6
    6
    6
    6
    7
    7
    8
    8
    10
    10
    10
    12
    14
    16
    18
    20
    24
  • 3”
    7
    7
    7
    7
    8
    8
    10
    10
    10
    10
    12
    12
    16
    18
    20
    20
    24
