Clevis Hanger for AWWA Ductile Iron and PVC C-900 Pipe – Fig. 11CI

For more product information please call (631) 665-9300

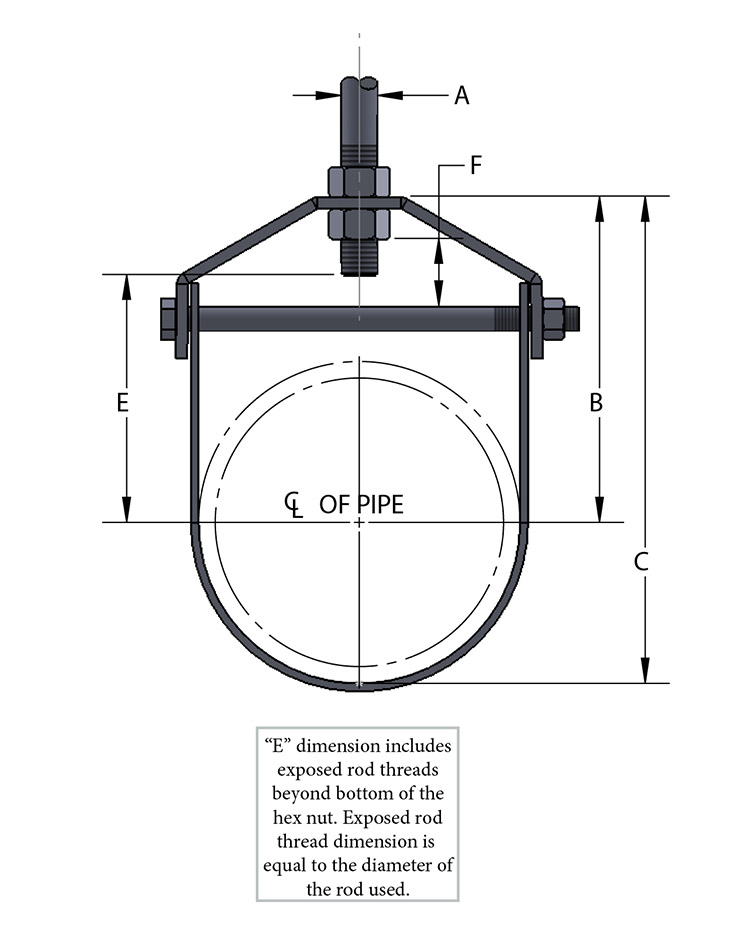

Diagram Notes

"E" dimension includes exposed rod threads beyond bottom of the hex nut.
Exposed rod thread dimension is equal to the diameter of the rod used.

Download Submittal

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized, hot-dip galvanized (11CIHDG).

Service

Designed for the suspension of stationary AWWA ductile iron pipe and PVC C-900 pipe.

Approvals

Complies with Federal Specifications WW-H-171-E (Type# 1), A-A-1192 A (Type# 1), and Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 1).

Ordering

Specify pipe size, material, finish and figure number.

Notes

For sizes 12" and larger a spacer sleeve is added over the cross bolt. Upper locknut must be tightened securely to assure proper hanger performance. Stainless steel hangers are recommended for appli- cations where protection from corrosive environ- ments is needed.

Pipe Size AWWA

3
4
6

8
10
12

14
16
18

20
24
Pipe OD

3.960
4.800
6.900

9.050
11.100
13.200

15.300
17.400
19.500

21.600
25.800
Material Size Top

8ga x 1.187
8ga x 1.187
3ga x 1 1/2

3ga x 1 3/4
3/8 x 1 3/8
3/8 x 2

1/2 x 2
1/2 x 2 1/2
1/2 x 2 1/2

5/8 x 3
5/8 x 3
Material Size Bottom

10ga x 1.187
10ga x 1.187
8ga x 1 1/2

8ga x 1 3/4
3ga x 1 3/4
3ga x 2

1/4 x 2
1/4 x 2 1/2
1/4 x 2 1/2

3/8 x 3
3/8 x 3
Bolt

5/16
3/8
1/2

5/8
3/4
3/4

1
1
1 1/4

1 1/4
1 1/4
A

1/2
5/8
3/4

3/4
7/8
7/8

1
1
1

1 1/4
1 1/4
B

5 5/8
6
6 13/16

8 5/16
10 1/2
11 3/4

13 1/2
15 1/4
16 3/4

18 1/2
20 3/4
C

8
8 1/2
10 1/8

13
16 1/4
18 3/4

21 1/2
24 1/4
26 3/4

29 3/4
34
E

4 9/16
4 5/8
5 3/16

6 7/8
8 1/2
9 3/4

11 3/4
13 1/2
14 7/8

16 3/8
18 5/8
F

2 9/16
2 1/8
1 3/4

1 7/8
2 1/4
2 13/16

2 1/2
3 3/8
3 3/8

3 3/4
4
Wgt Each (lbs)

1.14
1.32
2.86

4.56
8.70
11.08

4.56
8.70
11.08

50.50
58.00
Max REC Load (lbs)

1130
1430
1940

2000
3600
3800

4200
4600
4800

4800
4800

Clevis Hanger for AWWA Ductile Iron and PVC C-900 Pipe – Fig. 11CI

Pipe Size AWWA

Pipe OD

Material Size Top

Material Size Bottom

Bolt

A

B

C

E

F

Wgt Each (lbs)

Max REC Load (lbs)
