Plastic Coated Clevis Hanger – Fig. 110PC

For more product information please call (631) 665-9300

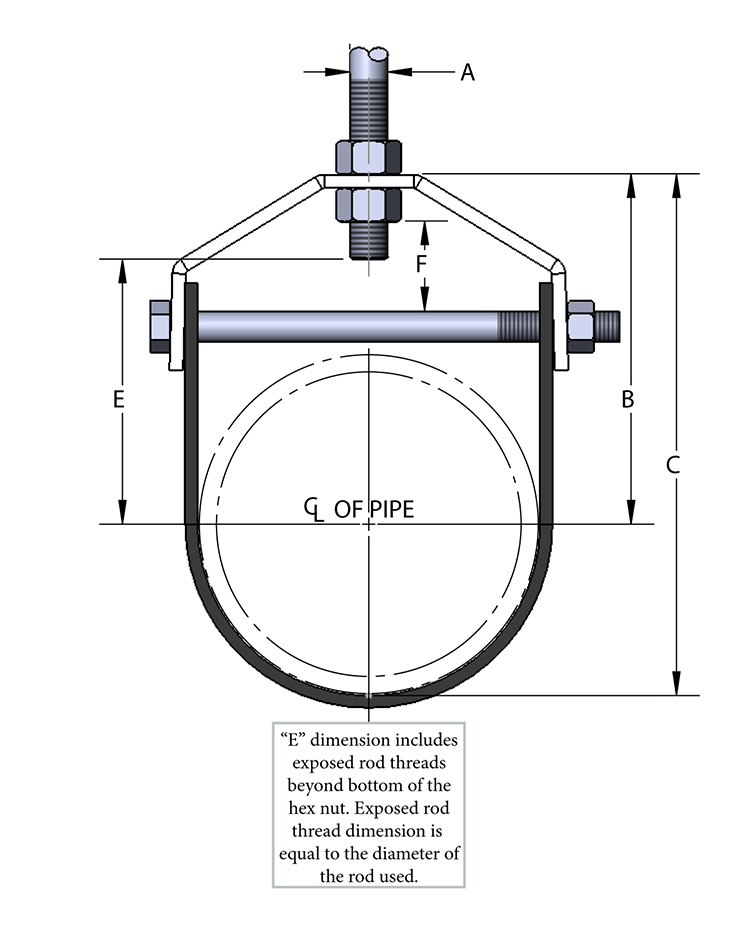

Diagram Notes

“E” dimension includes exposed rod threads beyond bottom of the hex nut.
Exposed rod thread dimension is equal to the diameter of the rod used.

Download Submittal

Material

Carbon Steel.

Finish

Top of hanger as well as nut and cross bolt are electro-galvanized and bottom of hanger is plastic coated.

Service

Designed for the suspension of non-insulated stationary pipe lines in light duty applications. Plastic coating pre-vents pipe from coming in contact with hanger; resulting in noise and vibration reduction as well as the prevention of electrolysis between pipe and hanger.

Approvals

Complies with Federal Specification WW-H-171-E (Type# 12) and Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 1).

Ordering

Specify pipe size and figure number.

Notes

Available in domestic.

Pipe Size

1/2
3/4
1

1 1/4
1 1/2
2

2 1/2
3
3 1/2

4
5
6

7
8

10
12
Pipe OD

0.840
1.050
1.315

1.660
1.900
2.375

2.875
3.500
4.000

4.500
5.563
6.625

7.625
8.625

10.750
12.750
Material Size Top

18ga x 7/8
18ga x 7/8
18ga x 7/8

18ga x 7/8
14ga x 7/8
14ga x 7/8

12ga x 1 3/16
12ga x 1 3/16
11ga x 1 3/16

11ga x 1 3/16
4ga x 1 1/4
3ga x 1 1/2

3ga x 1 1/2
3ga x 1 3/4

3/8 x 1 3/4
3/8 x 2
Material Size Bottom

18ga x 7/8
18ga x 7/8
18ga x 7/8

18ga x 7/8
16ga x 7/8
16ga x 7/8

14ga x 1 3/16
14ga x 1 3/16
14ga x 1 1/16

14ga x 1 3/16
8ga x 1 1/4
8ga x 1 1/2

8ga x 1 1/2
8ga x 1 3/4

3ga x 1 3/4
3ga x 2
Bolt

1/4
1/4
1/4

1/4
1/4
1/4

1/4
1/4
5/16

3/8
1/2
1/2

1/2
5/8

3/4
3/4
A

3/8
3/8
3/8

3/8
3/8
3/8

1/2
1/2
1/2

1/2
5/8
3/4

3/4
7/8

7/8
7/8
B

1 3/4
1 13/16
2 1/8

2 1/2
2 13/16
3 5/16

4 1/2
4 13/16
5 15/16

6 1/16
5 11/16
6 13/16

7 13/16
8 1/16

10
11 9/16
C

2 1/8
2 5/16
2 3/4

3 1/4
3 13/16
4 1/2

5 5/16
6 9/16
7 7/8

8 5/16
8 7/16
10 1/8

11 5/8
12 7/16

15 7/16
18
E

1
1 1/16
1 5/16

1 3/4
2 1/16
2 9/16

3 7/16
3 3/4
4 7/8

5
4 5/16
5 3/16

6 3/16
6 1/4

8
9 9/16
F

1/2
1/2
3/4

1 5/16
1 1/8
1 1/4

2 1/16
1 7/8
2 5/8

2 3/8
1 7/16
1 3/4

2
1 7/8

2 1/4
2 13/16
Wgt Each (lbs)

0.12
0.12
0.12

0.18
0.24
0.26

0.58
0.66
0.82

0.94
2.04
2.80

3.24
4.46

8.06
10.34
Max REC Load (lbs)

150
250
250

250
250
250

350
350
350

400
1430
1940

2000
2000

3600
3800
