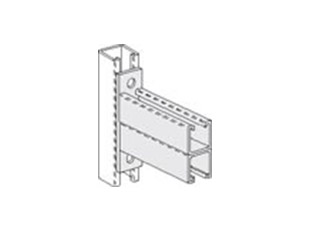

Double Channel Bracket – Fig. SB-809 PLTD

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Electro-galvanized carbon steel.
Also available in 316 stainless steel.

Dimensions

1-5/8" x 3-1/4" x 12 Ga Strut
3/8" x 2" x 6-1/4"

Hole Dimensions

Two 9/16" Mounting Holes
