Steel pipe and 1/4" steel plate (water stop). (304 and 316 stainless steel).
Plain, electro-galvanized or painted.
When installed in concrete forms, sleeve provides smooth, seal-able channel for piping. Water stop prevents water migration around outside of sleeve.
There are no approval options for this product.

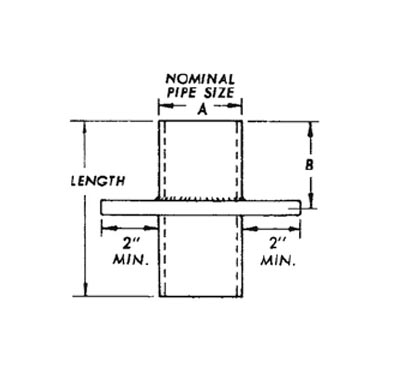

Specify nominal pipe size (A dimension), overall length, B dimension, figure number and finish.
