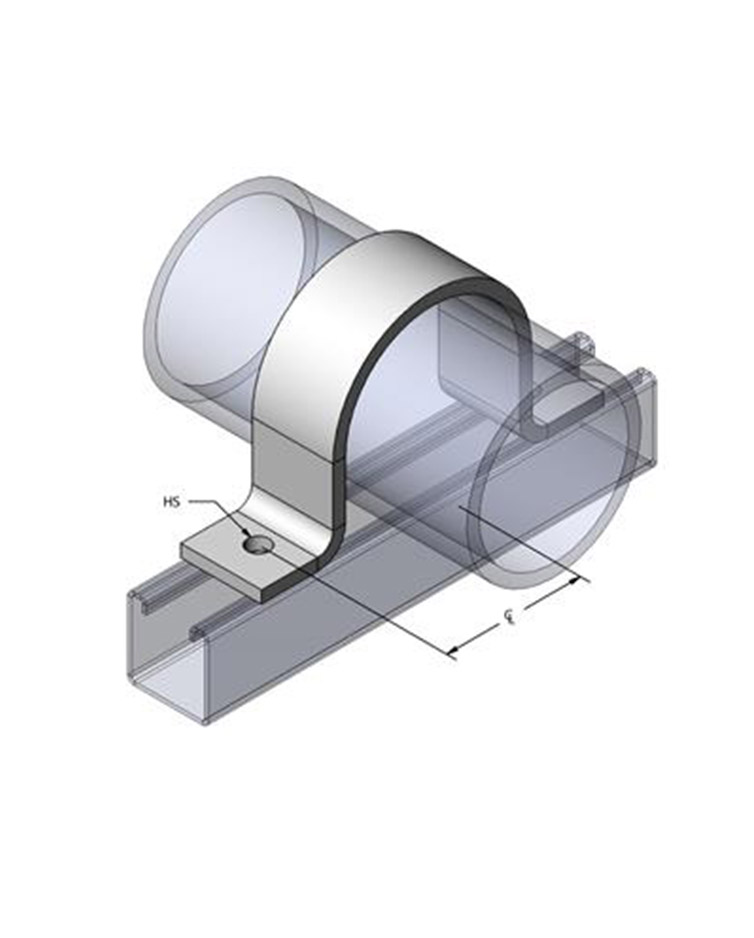

Two Hole Hold Down Clamp – Fig. 9110HD
For more product information please call (631) 665-9300
Diagram Notes
There are currently no diagram notes for this product.
Download Submittal
Material
Electro-galvanized carbon steel
SST 316 & 304
Part Number
HD-3126-1/2
HD-3126-3/4
HD-3126-1
HD-3126-1 1/4
HD-3126-1 1/2
HD-3126-2
HD-3126-2 1/2
HD-3126-3
HD-3126-3 1/2
HD-3126-4
HD-3126-5
HD-3126-6
HD-3126-8
HD-3126-10
HD-3126-12
HD-3126-14
HD-3126-16
Pipe Size
1/2”
3/4”
1”
1-1/4”
1-1/2”
2”
2-1/2”
3”
3-1/2”
4”
5”
6”
8”
10”
12”
14”
16”
A
2-7/8”
3-1/16”
3-1/2”
3-13/16”
3-15/16”
5-11/16”
6-3/16”
6-11/16”
7-13/16”
8”
9”
10-1/8”
12-11/16”
14-7/8”
16-13/16”
18”
20”
HS (in)
9/32”
9/32”
9/32”
9/32”
9/32”
7/16”
7/16”
7/16”
7/16”
7/16”
7/16”
7/16”
11/16”
11/16”
11/16”
11/16”
11/16”
C
7/16”
7/16”
7/16”
7/16”
7/16”
11/16”
11/16”
11/16”
11/16”
11/16”
11/16”
11/16”
3/4”
3/4”
3/4”
3/4”
3/4”
Material Size
1/8" x 1-5/8"
1/8" x 1-5/8"
1/8" x 1-5/8"
1/8" x 1-5/8"
1/8" x 1-5/8"
1/4" x 1-5/8"
1/4" x 1-5/8"
1/4" x 1-5/8"
1/4" x 1-5/8"
1/4" x 1-5/8"
1/4" x 1-5/8"
1/4" x 1-5/8"
1/4" x 1-5/8"
1/4" x 2"
1/4" x 2"
1/4" x 2"
1/4" x 2"
Design Load
500
500
500
500
500
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
Weight / 100 pcs
23
26
31
35
39
94
114
133
152
176
198
225
300
425
475
525
595
