Forged Steel Clevis – Fig. 909I

For more product information please call (631) 665-9300

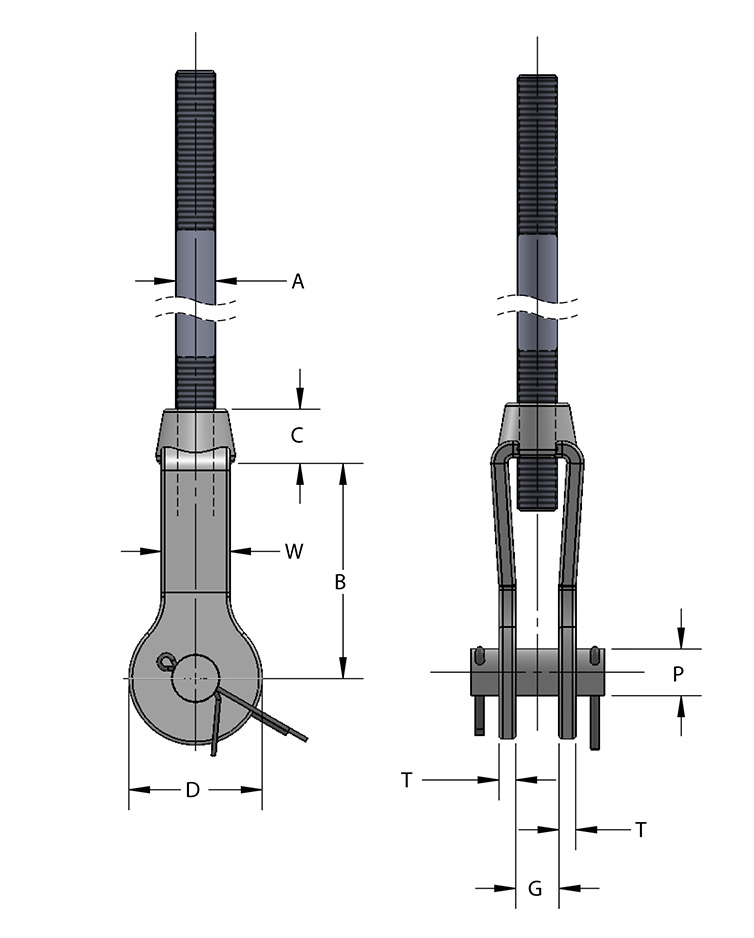

Diagram Notes

“G” represents the grip. “P” represents the pin diameter.

Download Submittal

Material

Forged steel (304 and 316 stainless steel).

Finish

Plain, electro-galvanized, or hot-dip galvanized.

Service

Designed for use on high temperature piping installations.

Approvals

Complies with Federal Specification WW-H-171-E (Type# 14), A-A-1192 A (Type# 14) and Manufacturers' Standardization Society MSS SP 58 and SP 69 (Type# 14).

Ordering

Specify size number, rod size, finish and part number. If other than standard dimension sizes required, specify size number, rod size, pin size and grip.

Notes

Forged clevis are supplied with pin and cotter pins. When figure number 909 I is supplied hot-dip galvanized the threading is not tapped oversize.

Size A

3/8-16
1/2-13
5/8-11

3/4-10
7/8-9
1-8

1 1/8-7
1 1/4-7
1 1/2-6
1 3/4-5
Clevis Size No.

2
2
2

2 1/2
2 1/2
3

3
3 1/2
4
4
B

3 9/16
3 9/16
3 9/16

4
4
5 1/16

5 1/16
5 1/16
6
6
C

5/8
5/8
5/8

1
1
1 1/4

1 1/4
1 1/4
1 1/2
1 3/4
D

1 7/16
1 7/16
1 7/16

2 1/2
2 1/2
3

3
3
3 1/2
4
G

1/2
1/2
5/8

3/4
7/8
1

1 1/8
1 1/4
1 1/2
1 3/4
P

1/2
5/8
3/4

7/8
1
1 1/8

1 1/4
1 3/8
1 5/8
1 7/8
T

5/16
5/16
5/16

5/16
5/16
1/2

1/2
1/2
1/2
1/2
W

1 1/16
1 1/16
1 1/16

1 1/4
1 1/4
1 1/2

1 1/2
1 1/2
1 3/4
2
Wgt Each (lbs)

1.0
1.0
1.1

2.3
2.5
5.1

5.2
5.6
8.1
9.0

Max Rec Load (lbs)

650 degrees F

610
1130
1810

2710
3770
4960

6230
8000
11630
14700
750 degrees F

540
1010
1610

2420
3360
4420

5560
7140
10370
14000

Forged Steel Clevis – Fig. 909I

Size A

Clevis Size No.

B

C

D

G

P

T

W

Wgt Each (lbs)

Max Rec Load (lbs)

650 degrees F

750 degrees F
