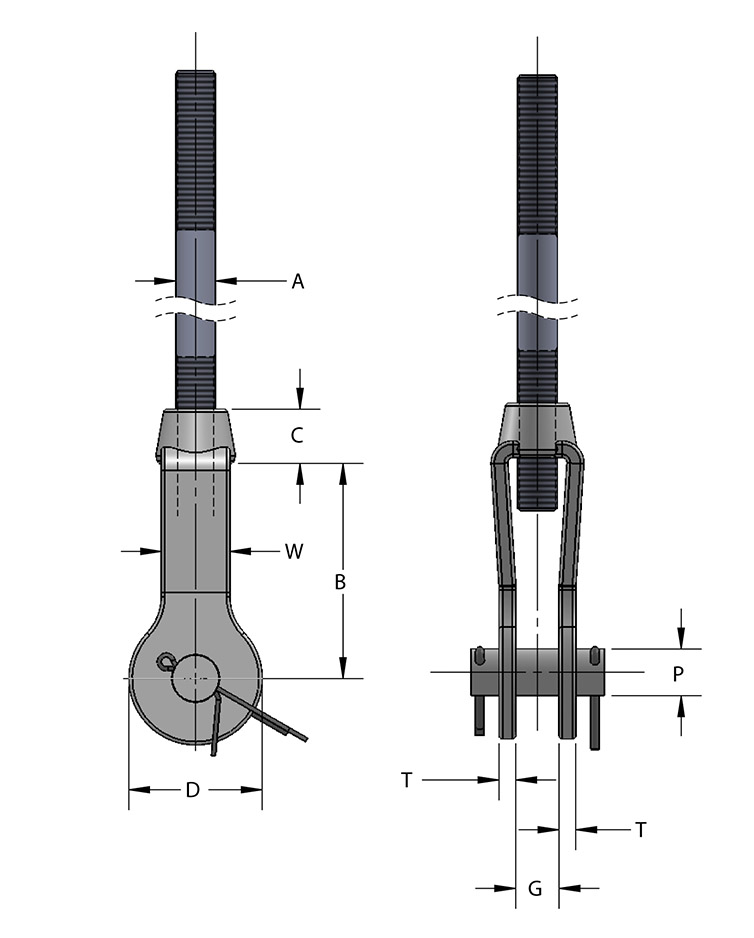

“G” represents the grip. “P” represents the pin diameter.
Forged steel (304 and 316 stainless steel).
Plain, electro-galvanized, or hot-dip galvanized.
Designed for use on high temperature piping installations.
Complies with Federal Specification WW-H-171-E (Type# 14), A-A-1192 A (Type# 14) and Manufacturers' Standardization Society MSS SP 58 and SP 69 (Type# 14).
Specify size number, rod size, finish and part number. If other than standard dimension sizes required, specify size number, rod size, pin size and grip.
Forged clevis are supplied with pin and cotter pins. When figure number 909 I is supplied hot-dip galvanized the threading is not tapped oversize.
