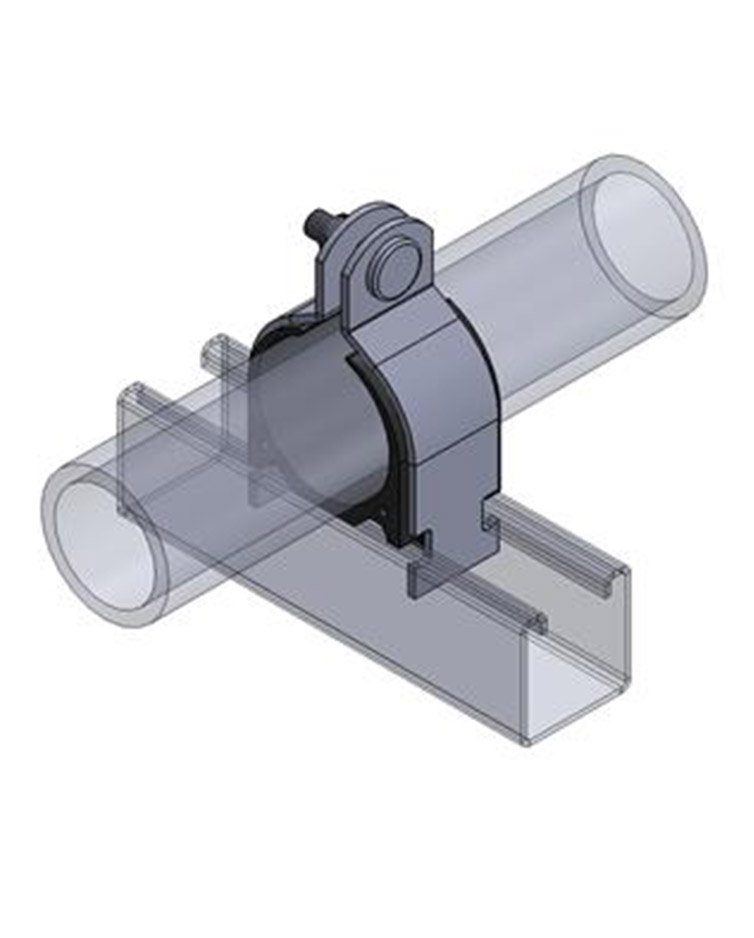

Cushion Strut Clamp – Fig. 8500

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Electro-galvanized steel with thermoplastic insulating liner.
Also available in IPS sizes.
Also available in 316 stainless steel.

OD Size

1/4”
3/8”
1/2”

5/8”
3/4”
7/8”

1”
1-1/8”
1-1/4”

1-3/8”
1-1/2”
1-5/8”

1-3/4”
1-7/8”
2”

2-1/8”
2-3/8”
2-5/8”

3-1/8”
4-1/8”
Nom. Tube Size

1/8”
1/4”
3/8”

1/2”
5/8”
3/4”

7/8”
1”
1-1/8”

1-1/4”
1-3/8”
1-1/2”

1-5/8”
1-3/4”
1-7/8”

2”
2-1/4”
2-1/2”

3”
4”
Weight Each (lbs)

0.110
0.110
0.110

0.120
0.130
0.200

0.210
0.275
0.292

0.310
0.354
0.400

0.413
0.425
0.454

0.483
0.600
0.610

0.650
0.900
