Clip (for use with Fig 820) – Fig. 820C

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Plain, electro-galvanized, hot-dip galvanized or painted.

Service

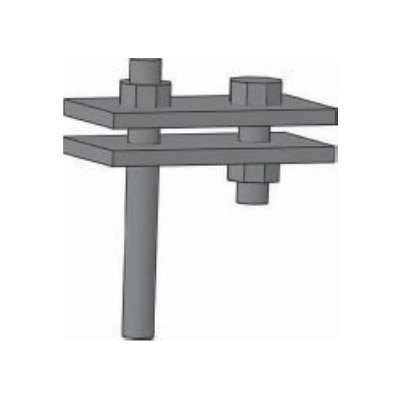

Recommended for the suspension of hanger rod for support of light loads up to 750 lbs. Rod can be suspended at any point along the length of the bracket, thus providing horizontal adjustment, using figure #820C clip which consists of two steel plates joined by a bolt and nut in one end.

Approvals

Fig. 820 complies with Federal Specification WW-H-171-E (Type# 32), A-A-1192 A (Type# 31) and Manufacturers' Standardization Society MSS SP 58 and SP 69 (Type# 31).

Ordering

Specify size number, figure number and finish.

Notes

Piping suspended from FIG. 820C clip shall not exceed 31/2" in diameter. Side clip (FIG. 820C) to be ordered separately.

  • Clip Number
    1
    2
  • Pipe Size
    3/4 to 2
    2 1/2 to 3 1/2
  • Rod Size A
    3/8
    1/2
  • Wgt Each (lbs)
    0.80
    1.24
Item Used With
