Carbon steel, also available in 304 and 316 stainless steel.
Plain, electro-galvanized, hot-dip galvanized or painted.

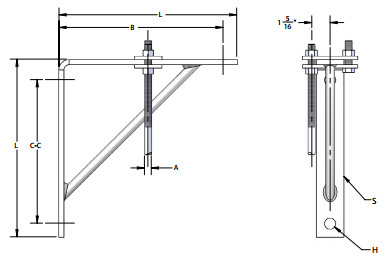

Recommended for the suspension of hanger rod for support of light loads up to 750 lbs. Rod can be suspended at any point along the length of the bracket, thus providing horizontal adjustment, using figure #820C clip which consists of two steel plates joined by a bolt and nut in one end.
Fig. 820 complies with Federal Specification WW-H-171-E (Type# 32), A-A-1192 A (Type# 31) and Manufacturers' Standardization Society MSS SP 58 and SP 69 (Type# 31).
Specify size number, figure number and finish.
Piping suspended from FIG. 820C clip shall not exceed 31/2" in diameter. Side clip (FIG. 820C) to be ordered separately.
