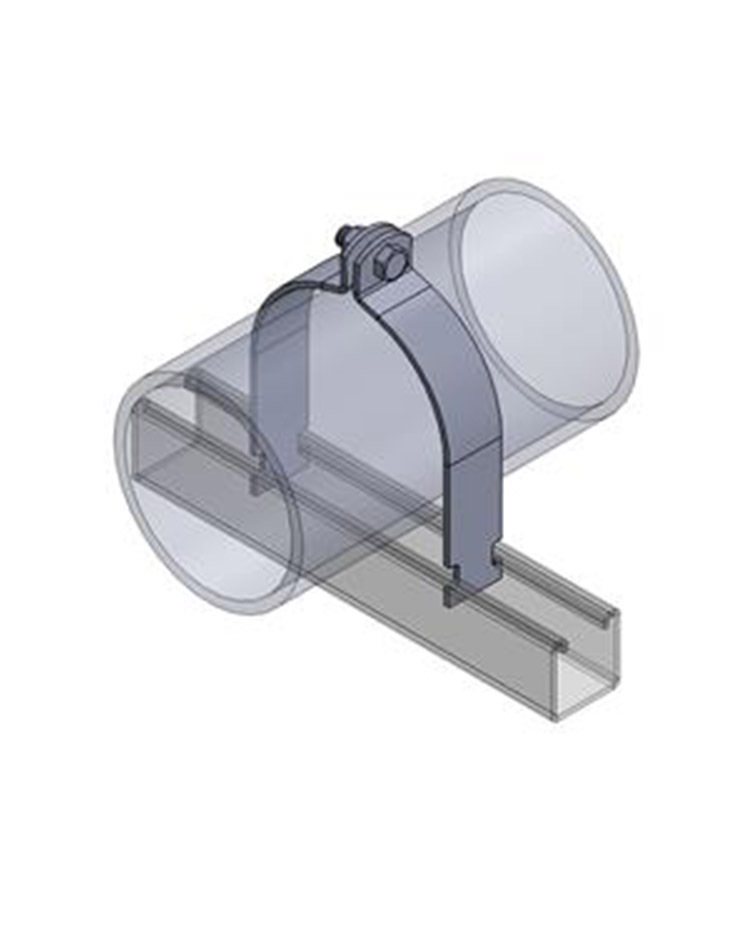

Rigid IPS Strut Clamp Assembled – Fig. 8200

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

8200-Electro-galvanized carbon steel
8200SS-304 stainless steel
Also available in 316 stainless steel.

  • Pipe Size
    3/8”
    1/2”
    3/4”
    1”
    1-1/4”
    1-1/2”
    2”
    2-1/2”
    3”
    3-1/2”
    4”
    5”
    6”
    8”
    10”
    12”
  • Pipe OD
    0.675
    0.840
    1.050
    1.315
    1.660
    1.900
    2.375
    2.875
    3.500
    4.000
    4.500
    5.563
    6.625
    8.625
    10.750
    12.750
  • Max Rec Load (lbs)
    400
    400
    600
    600
    600
    800
    800
    800
    800
    1000
    1000
    1000
    1000
    1000
    1000
    1000
  • Weight Each (lbs)
    0.10
    0.10
    0.15
    0.17
    0.18
    0.29
    0.34
    0.40
    0.47
    0.62
    0.67
    0.80
    1.02
    1.30
    1.43
    1.75
