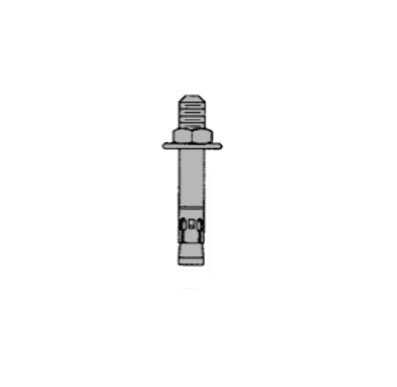

Wedge Anchor – Fig. 80

For more product information please call (631) 665-9300

Diagram Notes

There are currently no diagram notes for this product.

Download Submittal

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Electro-galvanized.

Service

Designed to be driven into a pre-drilled hole. Tightening nut sets anchor.

Approvals

There are no approval options for this product.

Ordering

Specify rod size and length.

Notes

Larger sizes available. Drill size is anchor size.

distribute

distribute

Size

1/4 x 13/4
1/4 x 2 1/4
1/4 x 3

3/8 x 2 1/4
3/8 x 2 3/4
3/8 x 3
3/8 x 3 1/2
3/8 x 3 3/4
3/8 x 5

1/2 x 2 3/4
1/2 x 3 3/4
1/2 x 4 1/2
1/2 x 5 1/2
1/2 x 7

5/8 x 3 1/2
5/8 x 4 1/2
5/8 x 5
5/8 x 6
Min Depth

1 1/8
1 1/8
1 1/8

1 3/4
1 3/4
1 3/4
1 3/4
1 3/4
1 3/4

2 1/4
2 1/4
2 1/4
2 1/4
2 1/4

2 7/8
2 7/8
2 7/8
2 7/8
Thread Depth

3/4
7/8
7/8

1 1/8
1 1/8
1 1/8
1 1/8
1 1/8
1 1/8

1 1/4
1 1/4
1 1/4
1 1/4
1 1/4

1 5/8
1 5/8
1 5/8
1 5/8
Wgt Each (lbs)

0,032
0.037
0.052

0.087
0.105
0.110
0.125
0.130
0.172

0.180
0.240
0.300
0.340
0.440

0.400
0.540
0.570
0.640
