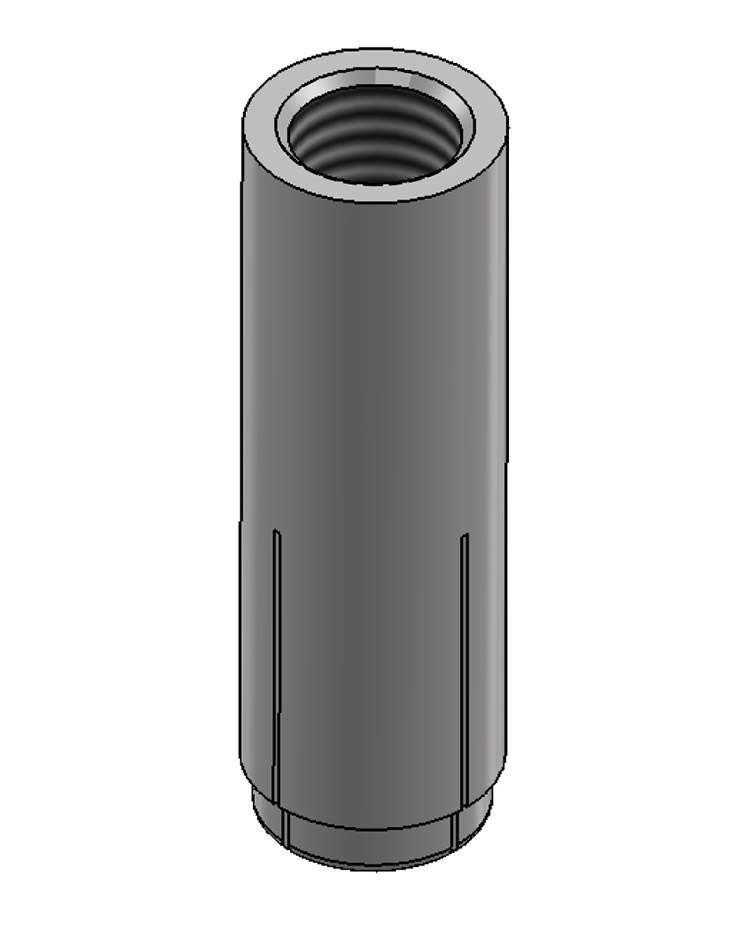

Drop In Anchor – Fig. 73

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Carbon steel, also available in 304 and 316 stainless steel.

Finish

Electro-galvanized.

Service

Designed to be inserted into a pre-drilled hole and set by means of a setting tool to provide attachment point for bolts or hanger rods.

Approvals

There are no approval options for this product.

Ordering

Specify bolt or rod size and figure number.

Notes

There are no notes for this product.

distributedistribute
  • Size
    1/4
    3/8
    1/2
    5/8
    3/4
  • Drill Diameter
    3/8
    1/2
    5/8
    7/8
    1
  • Min Depth
    1 1/4
    1 7/8
    2 3/8
    3
    3 1/2
  • Thread Depth
    7/16
    5/8
    13/16
    1 3/16
    1 3/8
  • Wgt Each (lbs)
    0.020
    0.060
    0.120
    0.320
    0.480
