Industrial Threaded Products
Seismic Attachments
-
Fig 4B
(631)665-9300

Pipe Clamp for Sway Bracing

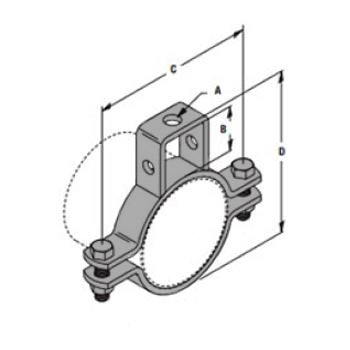

Pipe Clamp for Sway Bracing – Fig 4B

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Carbon Steel, also available in 304 and 316 stainless steel

Finish

Plain, Electro-Plated

Service

For bracing pipe against sway and seismic disturbance.

Approvals

Approved by the State of California Office of Statewide Health Planning and Development (OSHPD).

Ordering

Specify pipe size and finish.

Notes

The cross reference number for this product is Fig 040

Click Here for cross reference page for this product.
distributedomestic
  • Pipe Size
    in (mm)
    3/4
    1 (25)
    1-1/4 (32)
    1-1/2 (40)
    2 (50)
    2-1/2 (65)
    3 (80)
    3-1/2 (90)
    4 (100)
    5 (125)
    6 (150)
    8 (200)
  • Rod Size
    A
    3/8”-16
    3/8”-16
    3/8”-16
    3/8”-16
    3/8”-16
    1/2”-13
    1/2”-13
    1/2”-13
    5/8”-11
    5/8”-11
    3/4”-10
    7/8”-9
B
C
D
  • in
    1
    1
    1
    1
    1-1/2
    1-3/4
    1-7/8
    2
    2
    2
    2-1/8
    2-1/8
  • mm
    25.4
    25.4
    25.4
    25.4
    38.1
    44.4
    47.6
    50.8
    50.8
    50.8
    54.0
    54.0
  • in
    2-7/8
    3-1/4
    3-9/16
    3-13/16
    5-1/8
    5-5/8
    6-3/4
    7-1/4
    8-5/8
    9-7/8
    10-15/16
    13-7/16
  • mm
    73.0
    82.5
    90.6
    96.8
    130.2
    142.9
    171.4
    184.1
    219.1
    250.8
    277.8
    341.2
  • in
    2-5/8
    2-15/16
    3-1/4
    3-7/16
    4-5/8
    5-3/8
    6-1/8
    6-3/4
    7-1/4
    8-5/16
    9-1/2
    11-1/2
  • mm
    66.7
    74.6
    82.5
    87.3
    117.5
    136.5
    155.5
    171.4
    184.1
    211.1
    241.3
    292.1
  • Bolt
    Size
    5/16”-18
    5/16”-18
    5/16”-18
    5/16”-18
    5/16”-18
    3/8”-16
    3/8”-16
    3/8”-16
    1/2”-13
    5/8”-11
    5/8”-11
    3/4”-10
  • Design Load
    in (mm)
    330 (1.47)
    330 (1.47)
    330 (1.47)
    330 (1.47)
    440 (1.78)
    440 (1.78)
    660 (2.93)
    660 (2.93)
    800 (3.56)
    980 (4.36)
    980 (4.36)
    1200 (5.34)
  • Approximate Wgt/100
    in (mm)
    56 (25.4)
    60 (27.2)
    74 (33.5)
    79 (35.8)
    156 (70.7)
    176 (79.8)
    198 (89.9)
    219 (99.3)
    288 (130.6)
    390 (176.9)
    448 (203.2)
    691 (313.4)
