Industrial Threaded Products
Seismic Attachments
-
Fig 4L
(631)665-9300

fig4l

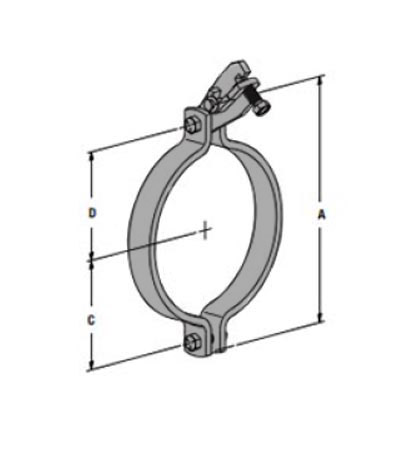

“In-Line” Sway Brace Attachment – Fig 4L

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Carbon Steel, also available in 304 and 316 stainless steel

Finish

Plain, Electro-Galvanized, or Stainless Steel.

Service

Multi-functional attachment to structure or braced pipe fitting.

Approvals

Underwriters Laboratories Listed in the USA (UL) and Canada (cUL). Approved Factory Mutual Engineering (FM). Approved by the State of California Office of Statewide Health Planning and Development (OSHPD).

Ordering

Figure number and finish.

Notes

The cross reference number for this product is Fig 031

Click Here for cross reference page for this product.
distributedistributedistributedomestic
  • Pipe Size
    in (mm)
    2-1/2 (65)
    3 (80)
    4 (100)
    5 (125)
    6 (150)
    8 (200)
A
C
D
  • in
    6-7/16
    7
    8-1/2
    9-3/4
    11-1/2
    13-1/4
  • mm
    163.5
    177.8
    215.9
    247.6
    292.1
    336.5
  • in
    2-1/2
    2-3/4
    3-3/8
    3-7/8
    5
    5-5/8
  • mm
    63.5
    69.8
    85.7
    98.4
    127.0
    142.8
  • in
    2-3/4
    3-1/16
    3-11/16
    4-3/8
    5-1/8
    5-5/8
  • mm
    69.8
    77.8
    93.7
    111.1
    130.2
    142.8
  • Bolt
    Size
    1/2”-13
    1/2”-13
    1/2”-13
    1/2”-13
    1/2”-13
    1/2”-13
  • Max Horizontal
    Design Load (cULus)  lbs/(kN)
    2015 (8.96)
    2015 (8.96)
    2015 (8.96)
    2015 (8.96)
    2015 (8.96)
    2015 (8.96)
  • Approximate Wgt/100
    in (mm)
    253 (114.7)
    268 (121.5)
    348 (157.8)
    380 (172.3)
    640 (290.3)
    728 (330.2)
  • Pipe Size
    in (mm)
    2-1/2 (65)
    3 (80)
    4 (100)
    5 (125)
    6 (150)
    8 (200)
  • Max Horizontal
    Design Load (cULus)  lbs/(kN)
    2015 (8.96)
    2015 (8.96)
    2015 (8.96)
    2015 (8.96)
    2015 (8.96)
    2015 (8.96)
Max Horizontal Design Load (FM) **
30-44 degrees
45-59 degrees
60-74 degrees
75-90degrees
  • Lbs
    1030
    1030
    530
    530
    530
    490
  • kN
    4.58
    4.58
    2.36
    2.36
    2.36
    2.18
  • Lbs
    1180
    1180
    730
    730
    730
    680
  • kN
    5.24
    5.24
    3.25
    3.25
    3.25
    3.02
  • Lbs
    1420
    1420
    890
    890
    890
    830
  • kN
    6.31
    6.31
    3.96
    3.96
    3.96
    3.96
  • Lbs
    1590
    1590
    990
    990
    990
    930
  • kN
    7.07
    7.07
    4.40
    4.40
    4.40
    4.13
