Industrial Threaded Products
Pipe Stanchions
-
Fig. 427
(631)665-9300

product

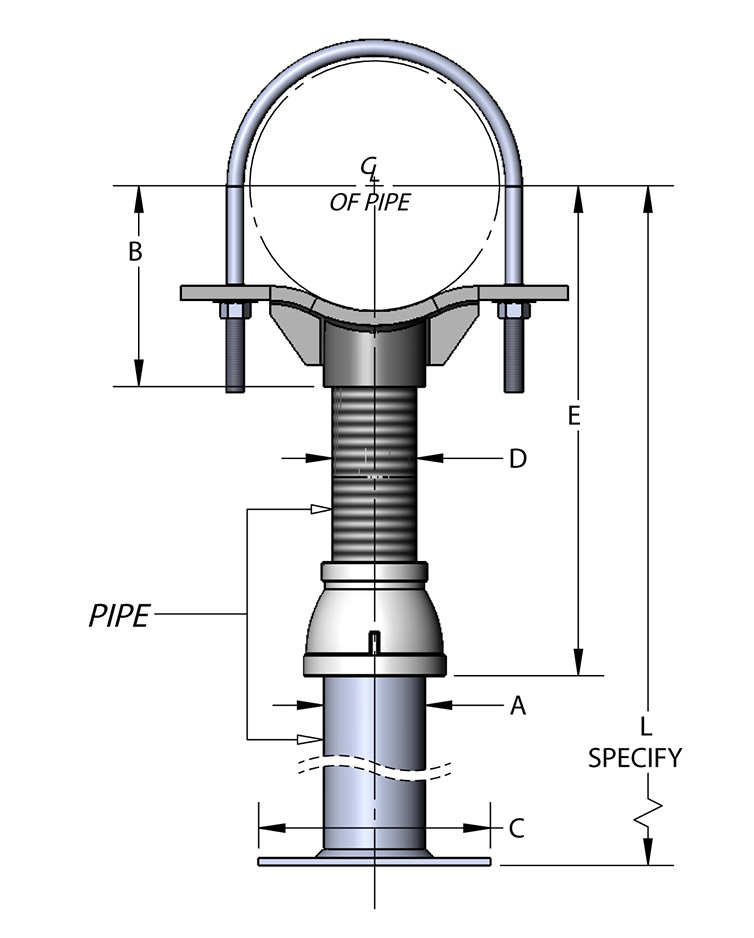

Adjustable Pipe Saddle Support with U-Bolt – Fig. 427

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Carbon steel saddle, nipple and u-bolt with special cast iron reducing coupling (304 and 316 stainless steel).

Finish

Plain, galvanized or painted.

Service

Designed to be used in conjunction with a base stand to support horizontal pipe. Straight cut pipe thread on nipple provides adjustability, u-bolt secures pipe to saddle.

Approvals

There are no approval options for this product.

Ordering

Specify size, figure number and finish. Base stand ordered separately. Requires accurate center line of pipe to floor dimension ("L") .

Notes

Adjustable pipe saddle supports with u-bolts are available in stainless steel.

  • Pipe Size
    2 1/2
    3
    3 1/2
    4
    5
    6
    8
    10
    12
    14
    16
    18
    20
    24
    30
    32
    36
  • Pipe Size A
    2 1/2
    2 1/2
    2 1/2
    3
    3
    3
    3
    3
    3
    4
    4
    6
    6
    6
    6
    6
    6
  • B
    3 7/16
    3 11/16
    3 15/16
    4 3/16
    4 13/16
    5 7/16
    6 15/16
    8 7/16
    9 15/16
    10 15/16
    12 3/8
    13 7/8
    15 3/8
    17 15/16
    2 15/16
    22 1/2
    24 1/2
  • C
    8
    8
    8
    10
    10
    10
    10
    10
    10
    10
    10
    12
    12
    12
    12
    12
    12
  • D
    1 1/2
    1 1/2
    1 1/2
    2 1/2
    2 1/2
    2 1/2
    2 1/2
    2 1/2
    2 1/2
    3
    3
    4
    4
    4
    4
    4
    4
  • E Min
    8
    8 1/4
    8 1/2
    9 1/4
    10
    10 1/2
    11 3/4
    13 1/2
    15
    16 1/4
    17 3/4
    19 1/2
    21
    23 3/4
    27
    28 1/4
    30 1/4
  • E Max
    13
    13 1/4
    13 1/2
    14
    14 3/4
    15 1/4
    16 1/2
    18 1/4
    19 3/4
    20 3/4
    22 1/4
    24
    25 1/2
    28 1/4
    31 1/2
    32 3/4
    34 3/4
Wgt Each (lbs)
  • Complete
    9.00
    9.20
    9.40
    15.00
    16.65
    17.64
    20.20
    25.15
    29.00
    49.20
    53.20
    70.80
    104.80
    130.00
    170.00
    181.00
    249.00
  • Saddle Only
    4.80
    5.00
    5.20
    7.60
    9.25
    10.25
    12.80
    17.75
    21.60
    38.00
    42.00
    51.00
    85.00
    110.00
    150.00
    161.00
    229.00
