Industrial Threaded Products
Pipe Stanchions
-
Fig. 426
(631)665-9300

product

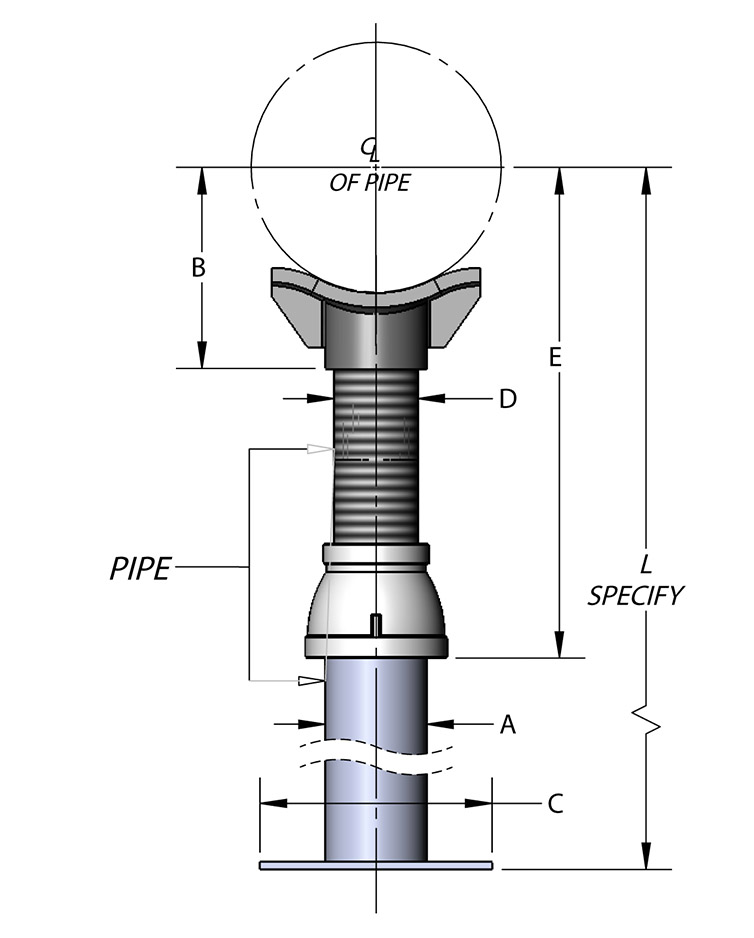

Adjustable Pipe Saddle Support – Fig. 426

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Download Submittal
Material

Carbon steel saddle and nipple with special cast iron reducing coupling (304 and 316 stainless steel).

Finish

Plain, electro-galvanized or painted.

Service

Designed to be used in conjunction with a base stand to support horizontal pipe. Straight cut pipe thread on nipple provides adjustability.

Approvals

Complies with Federal Specification WW-H-171-E (Type# 39), A-A-1192 A (Type# 38) and Manufacturers' Standardization Society MSS SP 58 and SP 69 (Type#38).

Ordering

Specify size, figure number and finish. Base stand ordered separately. Requires accurate center line of pipe to floor dimension ("L") .

Notes

Adjustable pipe saddle supports are available in stainless steel.

  • Pipe Size
    2 1/2
    3
    3 1/2
    4
    5
    6
    8
    10
    12
    14
    16
    18
    20
    24
    30
    32
    36
  • Pipe Size A
    2 1/2
    2 1/2
    2 1/2
    3
    3
    3
    3
    3
    3
    4
    4
    6
    6
    6
    6
    6
    6
  • B
    3 7/16
    3 11/16
    3 15/16
    4 3/16
    4 13/16
    5 7/16
    6 15/16
    8 7/16
    9 15/16
    10 15/16
    12 3/8
    13 7/8
    15 3/8
    17 15/16
    2 15/16
    22 1/2
    24 1/2
  • C
    8
    8
    8
    10
    10
    10
    10
    10
    10
    10
    10
    12
    12
    12
    12
    12
    12
  • D
    1 1/2
    1 1/2
    1 1/2
    2 1/2
    2 1/2
    2 1/2
    2 1/2
    2 1/2
    2 1/2
    3
    3
    4
    4
    4
    4
    4
    4
  • E Min
    8
    8 1/4
    8 1/2
    9 1/4
    10
    10 1/2
    11 3/4
    13 1/2
    15
    16 1/4
    17 3/4
    19 1/2
    21
    23 3/4
    27
    28 1/4
    30 1/4
  • E Max
    13
    13 1/4
    13 1/2
    14
    14 3/4
    15 1/4
    16 1/2
    18 1/4
    19 3/4
    20 3/4
    22 1/4
    24
    25 1/2
    28 1/4
    31 1/2
    32 3/4
    34 3/4
Wgt Each (lbs)
  • Complete
    9.00
    9.20
    9.40
    15.00
    16.65
    17.64
    20.20
    25.15
    29.00
    49.20
    53.20
    70.80
    104.80
    130.00
    170.00
    181.00
    249.00
  • Saddle Only
    4.80
    5.00
    5.20
    7.60
    9.25
    10.25
    12.80
    17.75
    21.60
    38.00
    42.00
    51.00
    85.00
    110.00
    150.00
    161.00
    229.00
