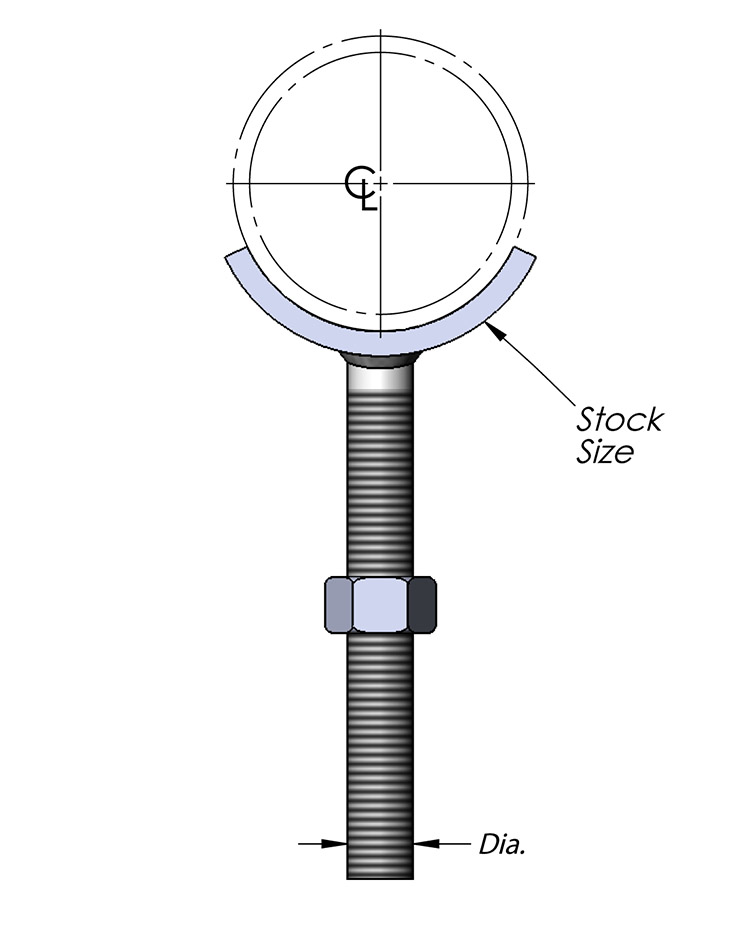

Adjustable Pipe Support – Fig. 422

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Carbon steel (304 and 316 stainless steel).

Finish

Plain, electro-galvanized or painted.

Service

Designed to be used in conjunction with a base stand to support pipe running close to the floor. Threaded stud and nut provide adjustability

Approvals

There are no approval options for this product.

Ordering

Specify size, figure number and finish. Base stand can be ordered separately (requires accurate center line of pipe to floor dimension).

Notes

There are no notes for this product.

  • Pipe Size
    2
    3
    4
    5
    6
    8
    10
    12
  • Steel Size
    1 1/2 x 3/8
    1 1/2 x 3/8
    2 x 3/8
    2 x 3/8
    2 x 1/2
    2 x 1/2
    3 x 1/2
    3 x 1/2
  • Dia. & Length of Stem
    7/8 x 8
    7/8 x 8
    1 x 8
    1 x 8
    1 1/4 x 8
    1 1/4 x 8
    1 1/2 x 8
    1 1/2 x 8
  • Wgt Each (lbs)
    1.57
    1.85
    2.70
    3.14
    4.90
    5.75
    9.88
    11.40
