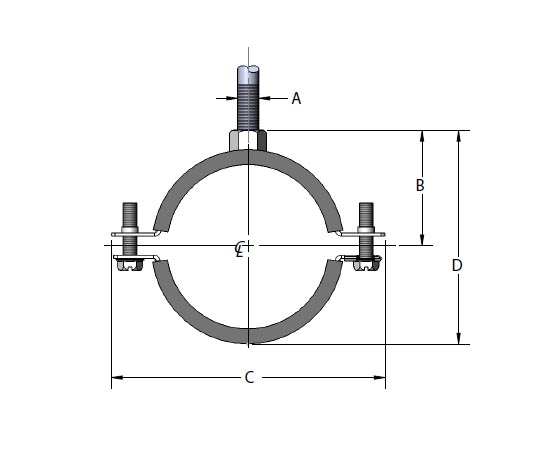

“Handy Split” Ring Hanger – Fig. 40HS

For more product information please call (631) 665-9300
Diagram Notes

There are currently no diagram notes for this product.

Material

Electro-galvanized carbon steel with EPDM rubber insulation liner (EPDM rubber liner is UV resistant)

Service

Designed for the suspension of non-insulated stationary pipe lines horizontally and vertically.

Approvals

Complies with MSS SP-58 and SP-69 (type 12)

Size Range

1/4” to 4”

Temperature Range

-50 degrees F to 230 degrees F

Benefits

- EPDM Rubber Liner minimizes noise
- “Handy Split” hinge mechanism allows installation with one hand
- 3/8” welded cap nut allows easy attachment to threaded rod
- Many sizes accommodate both OD and IPS sizes

  • Pipe Size (IPS)
    1/4”
    3.8”
    -
    1/2”
    3/4”
    1”
    1-1/4”
    1-1/2”
    -
    2”
    -
    2-1/2”
    -
    3”
    -
    3-1/2”
    4”
  • Copper Tube Size (CTS)
    3/8”
    1/2”
    5/8”
    3/4”
    1”
    1-1/4”
    1-1/2”
    -
    2”
    -
    2-1/2”
    -
    3”
    -
    3-1/2”
    4”
    -
