Industrial Threaded Products

Spring Vibration Isolaters

-

Fig. 36

(631)665-9300

Spring Vibration

Vibration Spring-Flex and Neoprene Hanger – Fig. 36

For more product information please call (631) 665-9300

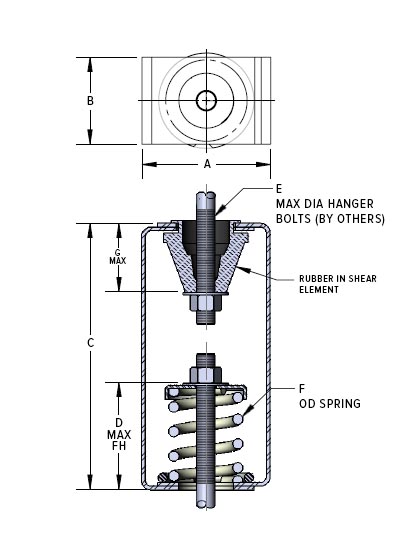

Diagram Notes

Click the image to make it larger

Download Submittal

Materials / Finishes

Painted Carbon Steel Housing and spring with neoprene rubber element (36)

Service

Designed to isolate both noise and vibration for piping or suspended equipment.

Approvals

There are no approval options for this product.

Ordering

Specify figure number, isolator size, rod size and load.

Notes

See hanger selection guide.

Isolator Size

EMP - 1 -15

EMP - 1 -25

EMP - 1 -50

EMP - 1 -100

EMP - 1 -150

EMP - 1 -200

EMP - 1 -300

EMP - 1 -400

EMP - 1 -500

EMP - 1 -600

EMP - 1 -800

EMP - 1 -1000

EMP - 1 -1200

EMP - 1 -1400

EMP - 1 -1600

EMP - 1 -1800
Rated Load
lbs At 1" DEFL

15

25

50

100

150

200

300

400

500

600

800

1000

1200

1400

1600

1800
Solid Load (lbs)

27

39

83

160

242

293

442

585

782

925

1257

1565

1829

2131

2419

2662

Dimensions (in)

A

3-1/2

3-1/2

3-1/2

3-1/2

3-1/2

3-1/2

3-1/2

3-1/2

4-1/2

4-1/2

4-1/2

4-1/2

4-1/2

4-1/2

4-1/2

4-1/2
B

2-1/2

2-1/2

2-1/2

2-1/2

2-1/2

2-1/2

2-1/2

2-1/2

4-7/8

4-7/8

4-7/8

4-7/8

4-7/8

4-7/8

4-7/8

4-7/8
C

7-1/8

7-1/8

7-1/8

7-1/8

7-1/8

7-1/8

7-1/8

7-1/8

11

11

11

11

11

11

11

11
D

3

3

3

3

3

3

3

3

4-3/8

4-3/8

4-3/8

4-3/8

4-3/8

4-3/8

4-3/8

4-3/8
E

1/2

1/2

1/2

1/2

1/2

1/2

1/2

1/2

3-1/4

3-1/4

3-1/4

3-1/4

1

1

1

1
F

2

2

2

2

2

2

2

2

3-1/4

3-1/4

3-1/4

3-1/4

3-1/4

3-1/4

3-1/4

3-1/4
G

1-7/8

1-7/8

1-7/8

1-7/8

1-7/8

1-7/8

1-7/8

21-7/8

2-3/8

2-3/8

2-3/8

2-3/8

2-3/8

2-3/8

2-3/8

2-3/8
