Industrial Threaded Products
Spring Vibration Isolaters
-
Fig. 35
(631)665-9300

product
Vibration Spring - Flex Hanger – Fig. 35
For more product information please call (631) 665-9300
Diagram Notes

Click the image to make it larger

Download Submittal
Materials / Finishes

Painted Carbon Steel Housing with Steel Spring (35)

Service

Designed to isolate low frequency vibrations for piping or suspended equipment. Typical applications include fans, duct work, air handling units, piping, and suspended ceilings.

Approvals

There are no approval options for this product.

Ordering

Specify figure number, isolator size, rod size and load.

Notes

See hanger selection guide.

  • Isolator Size
    EMP - 1 -15
    EMP - 1 -25
    EMP - 1 -50
    EMP - 1 -100
    EMP - 1 -150
    EMP - 1 -200
    EMP - 1 -300
    EMP - 1 -400
    EMP - 1 -500
    EMP - 1 -600
    EMP - 1 -800
    EMP - 1 -1000
    EMP - 1 -1200
    EMP - 1 -1400
    EMP - 1 -1600
    EMP - 1 -1800
  • Rated Load
    lbs At 1" DEFL
    15
    25
    50
    100
    150
    200
    300
    400
    500
    600
    800
    1000
    1200
    1400
    1600
    1800
  • Solid Load (lbs)
    27
    39
    83
    160
    242
    293
    442
    585
    782
    925
    1257
    1565
    1829
    2131
    2419
    2662

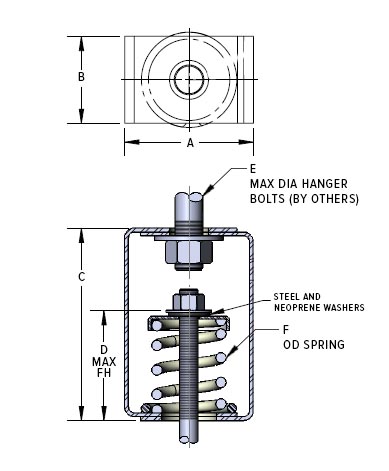

Dimensions (in)
  • A
    3-1/2
    3-1/2
    3-1/2
    3-1/2
    3-1/2
    3-1/2
    3-1/2
    3-1/2
    4-1/2
    4-1/2
    4-1/2
    4-1/2
    4-1/2
    4-1/2
    4-1/2
    4-1/2
  • B
    2-1/2
    2-1/2
    2-1/2
    2-1/2
    2-1/2
    2-1/2
    2-1/2
    2-1/2
    3-1/2
    3-1/2
    3-1/2
    3-1/2
    3-1/2
    3-1/2
    3-1/2
    3-1/2
  • C
    5-5/8
    5-5/8
    5-5/8
    5-5/8
    5-5/8
    5-5/8
    5-5/8
    5-5/8
    10-1/8
    10-1/8
    10-1/8
    10-1/8
    10-1/8
    10-1/8
    10-1/8
    10-1/8
  • D
    3-1/8
    3-1/8
    3-1/8
    3-1/8
    3-1/8
    3-1/8
    3-1/8
    3-1/8
    4-5/8
    4-5/8
    4-5/8
    4-5/8
    4-5/8
    4-5/8
    4-5/8
    4-5/8
  • E
    1/2
    1/2
    1/2
    1/2
    1/2
    1/2
    1/2
    1/2
    1
    1
    1
    1
    1
    1
    1
    1
  • F
    2
    2
    2
    2
    2
    2
    2
    2
    3-1/4
    3-1/4
    3-1/4
    3-1/4
    3-1/4
    3-1/4
    3-1/4
    3-1/4
