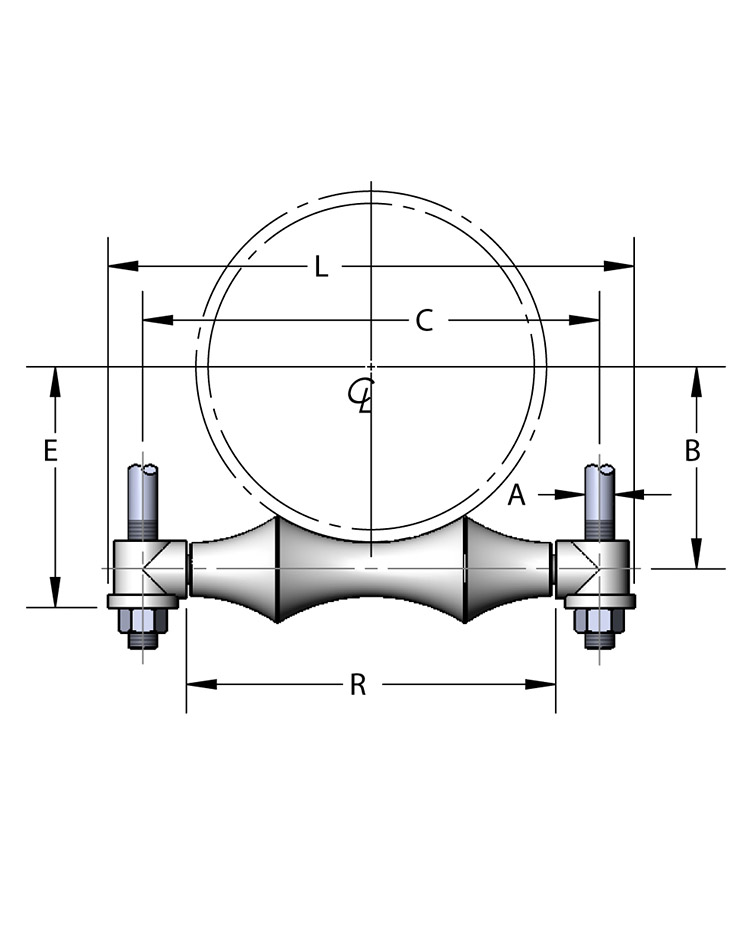

Carbon steel axle with cast iron roller and socket ends, also available in 316 stainless steel.
Plain, electro-galvanized or painted.
Designed for the suspension of pipe where longitudinal movement may occur due to expansion and contraction, and vertical adjustment is necessary.
Complies with Federal Specification WW-H-171-E (Type# 42), A-A-1192 A (Type# 41) and Manufacturers' Standardization Society MSS SP-58 and SP-69 (Type# 41).
Specify roller size, figure number and finish. Please remember to consider insulation thickness when sizing rollers.
Available in domestic.
